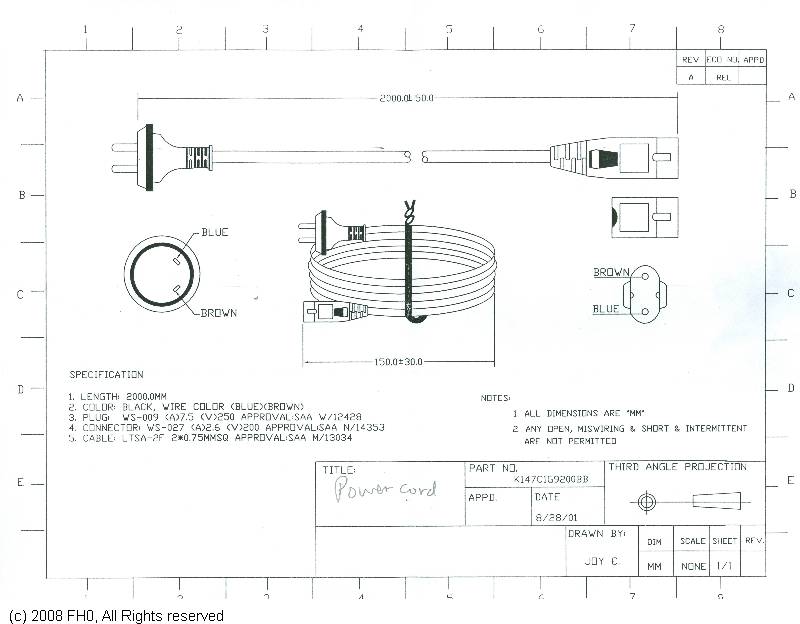

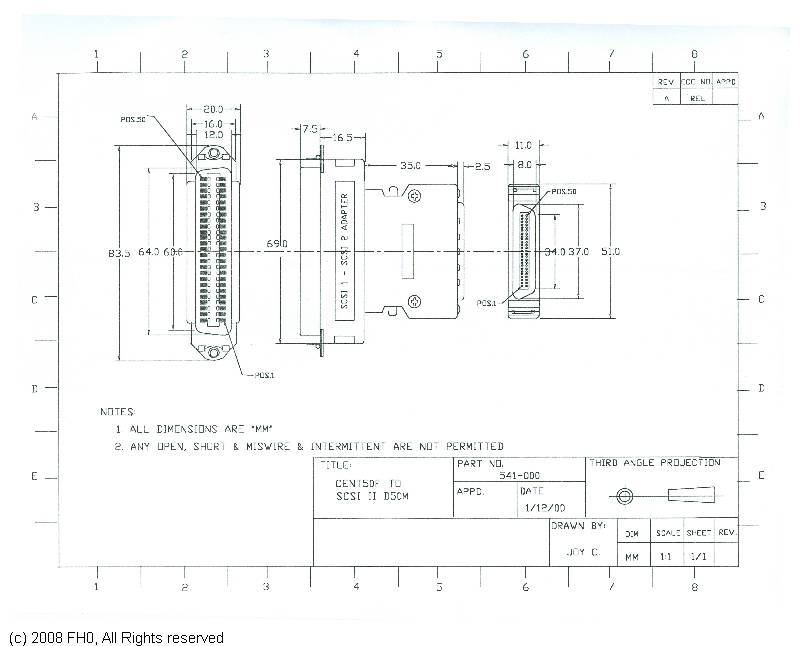

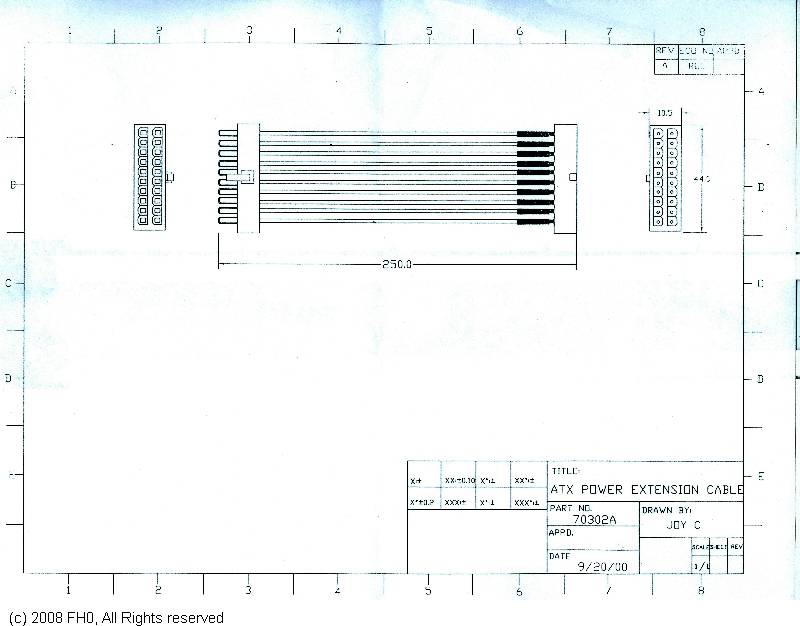

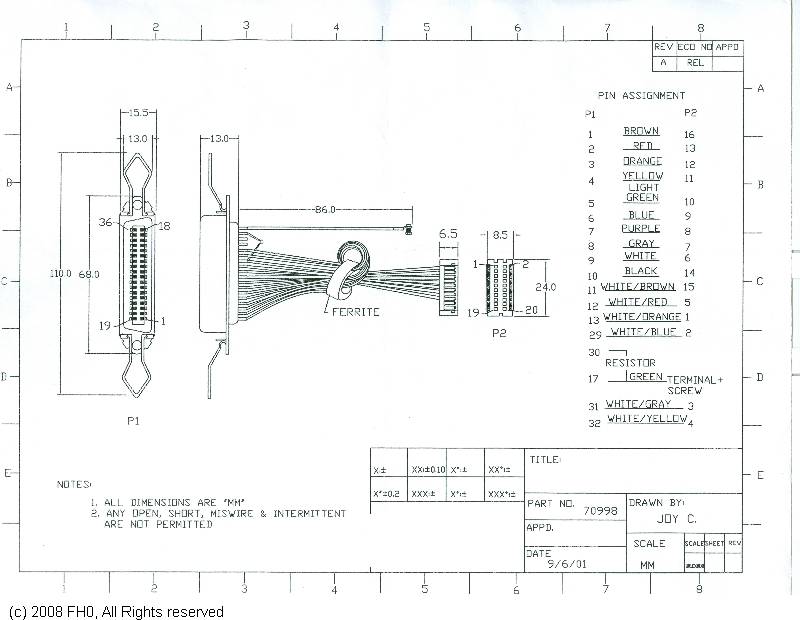

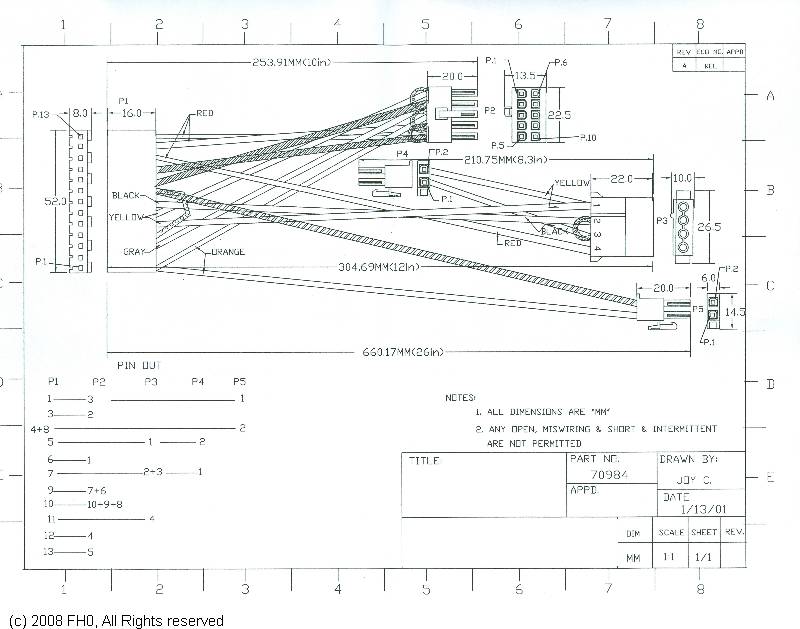

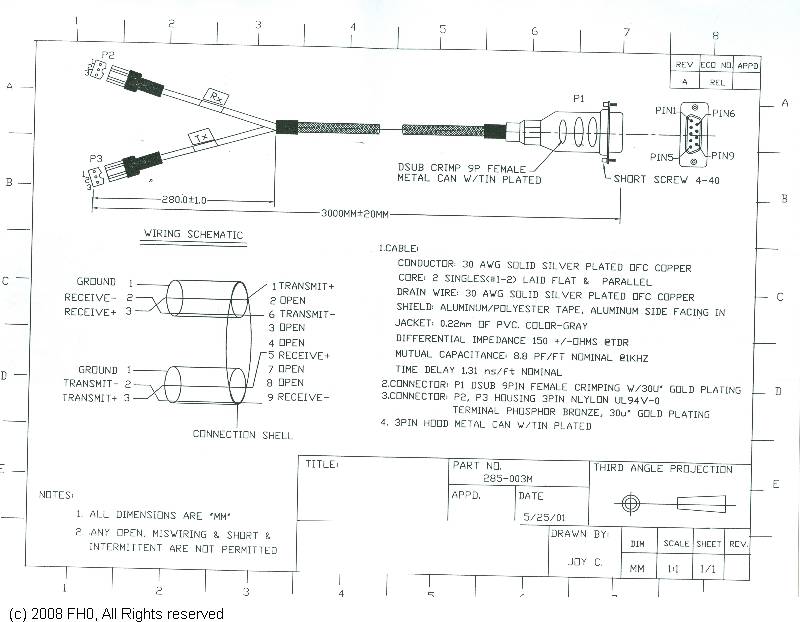

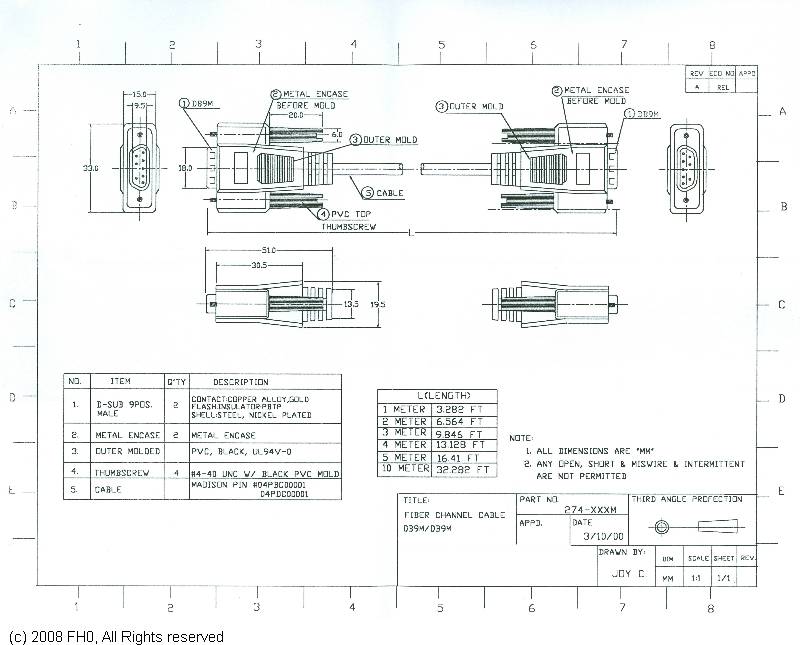

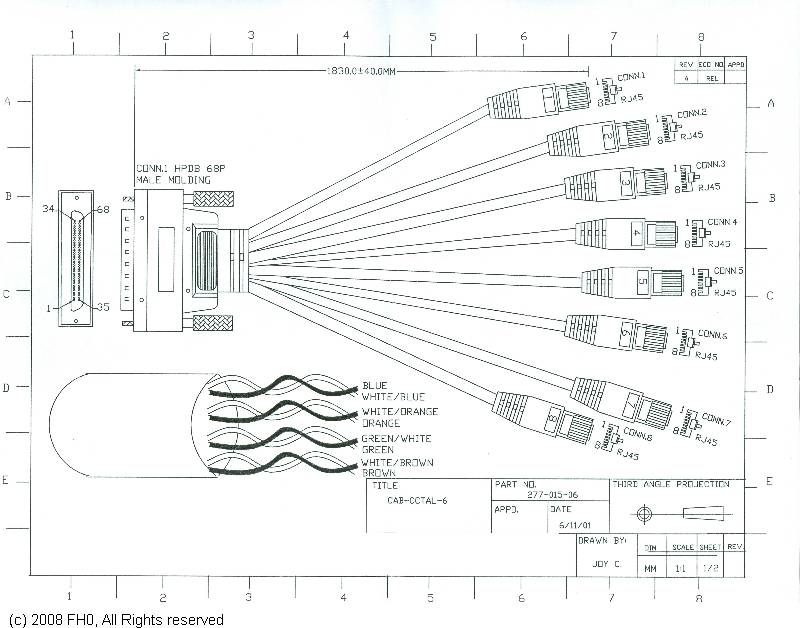

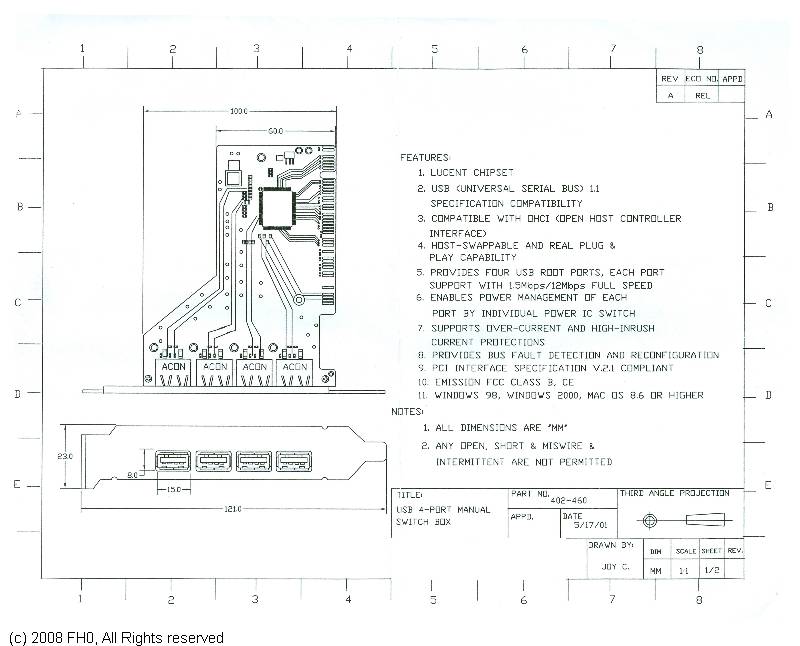

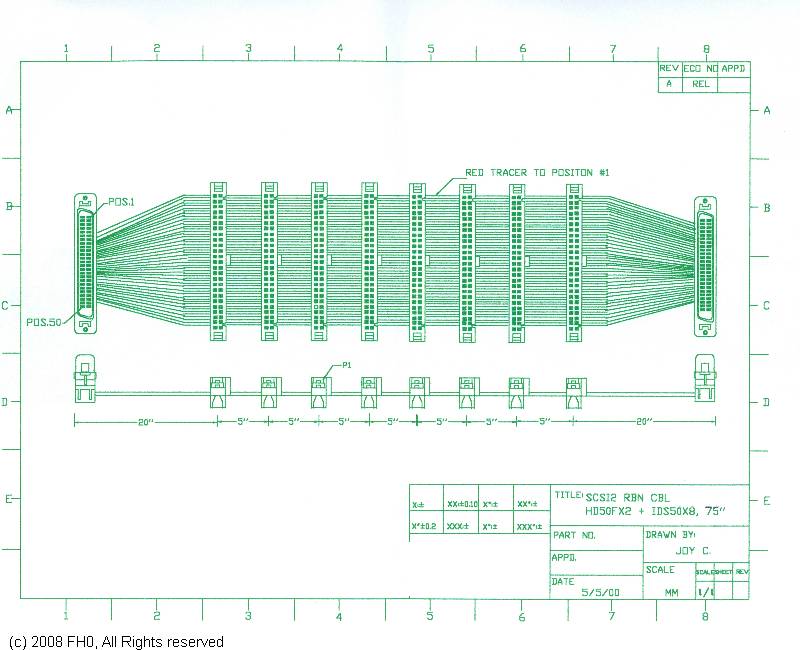

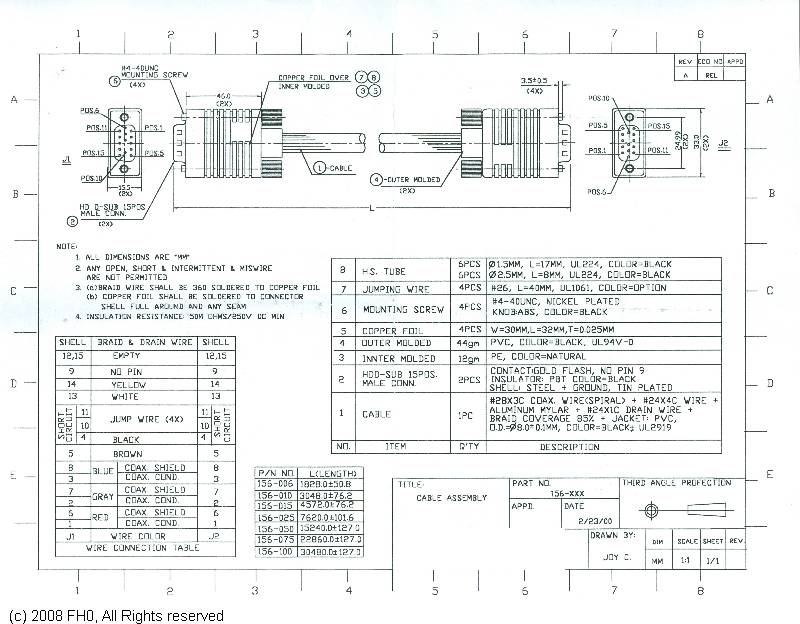

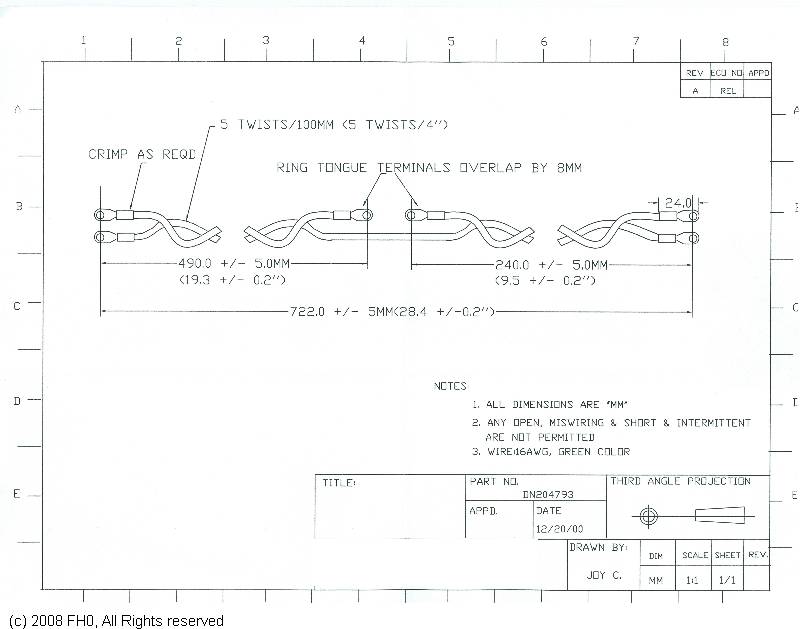

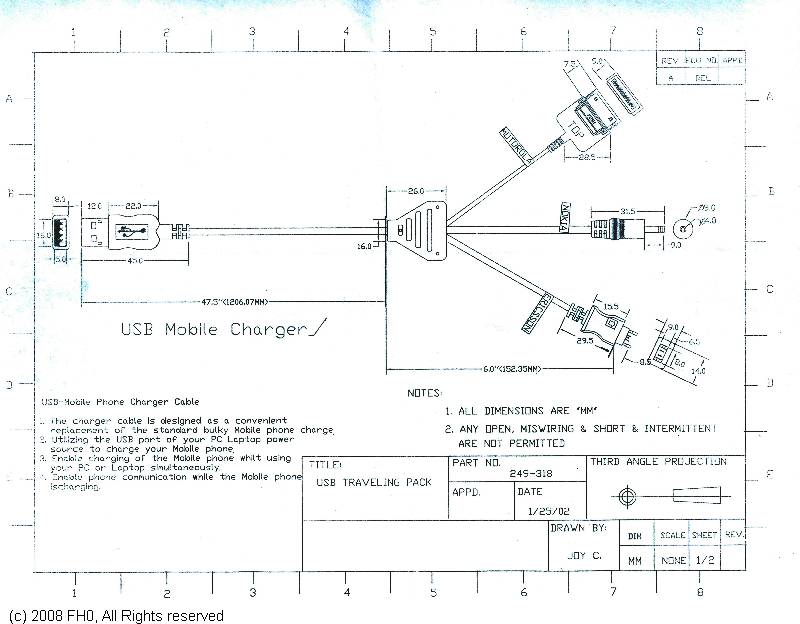

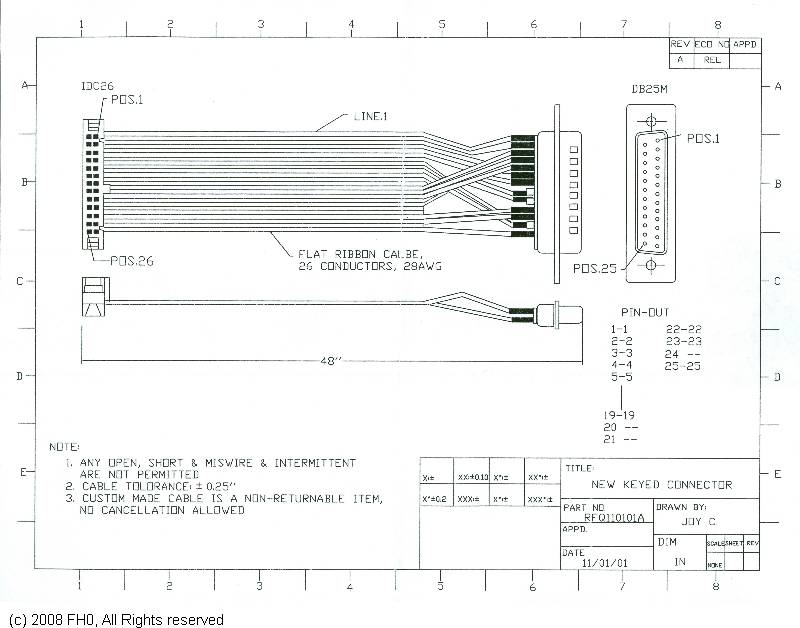

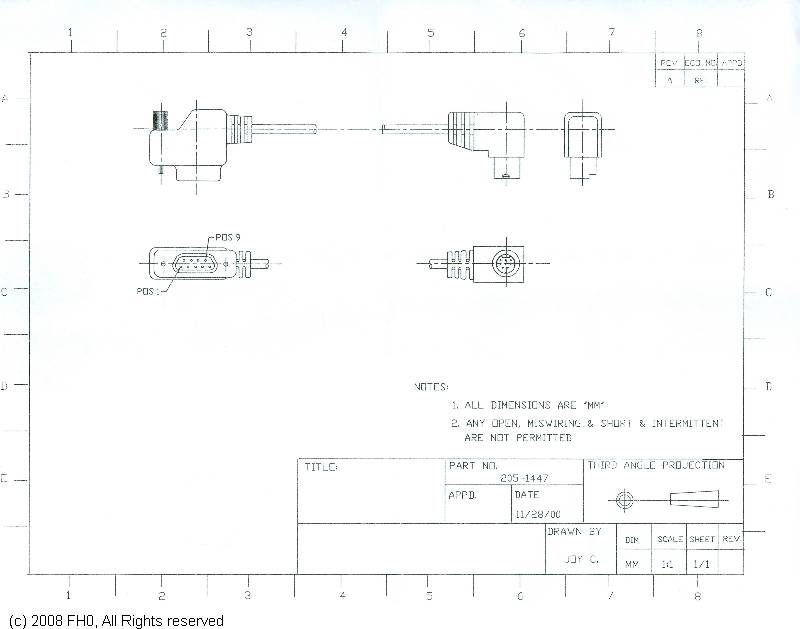

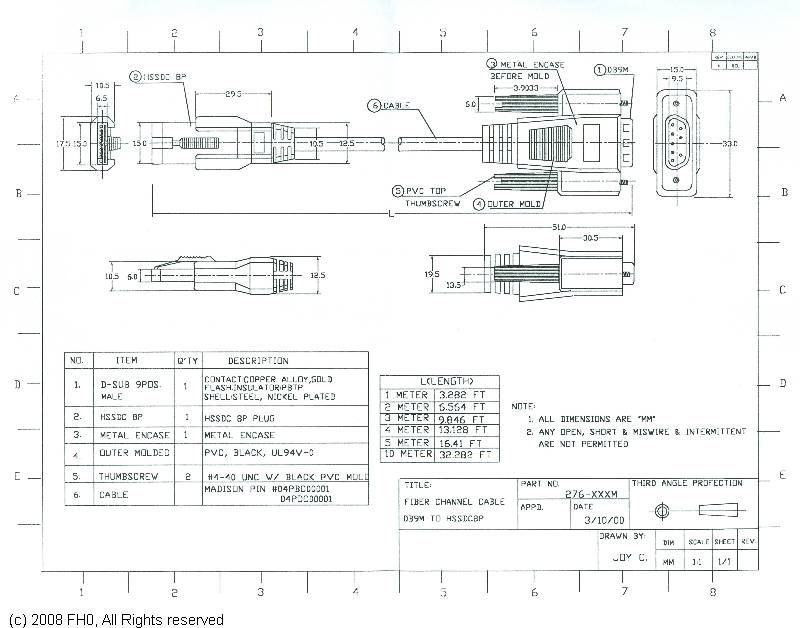

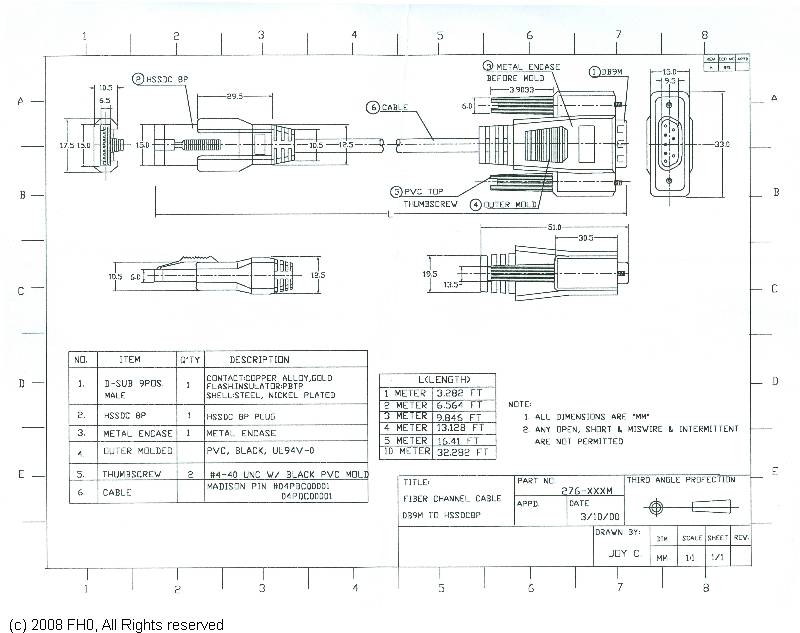

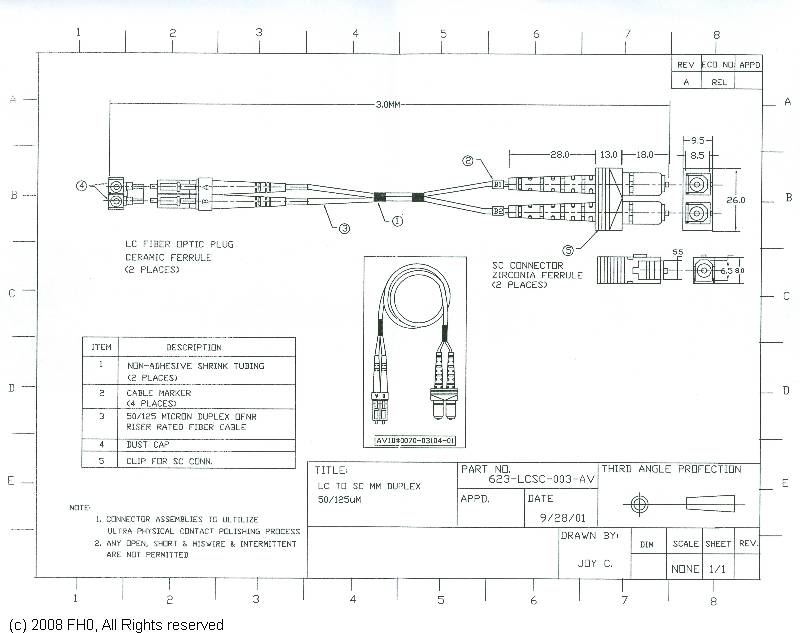

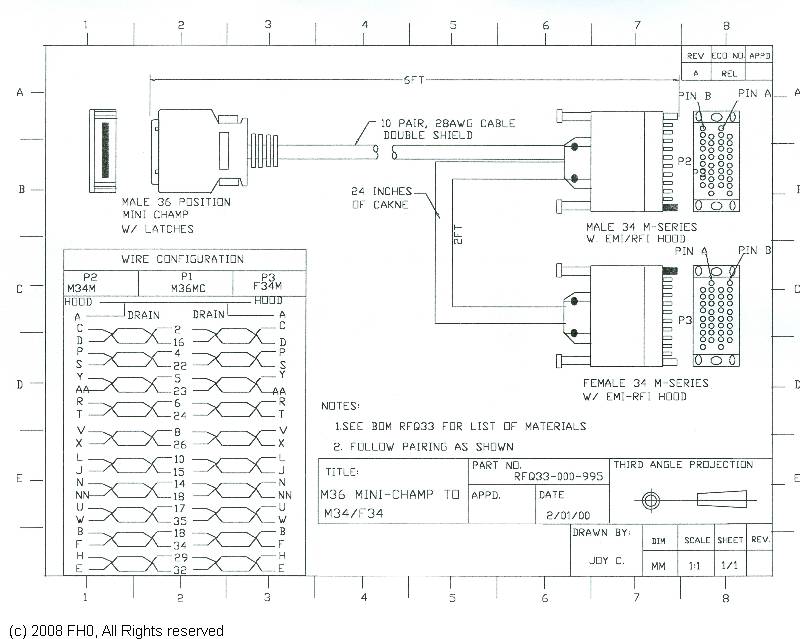

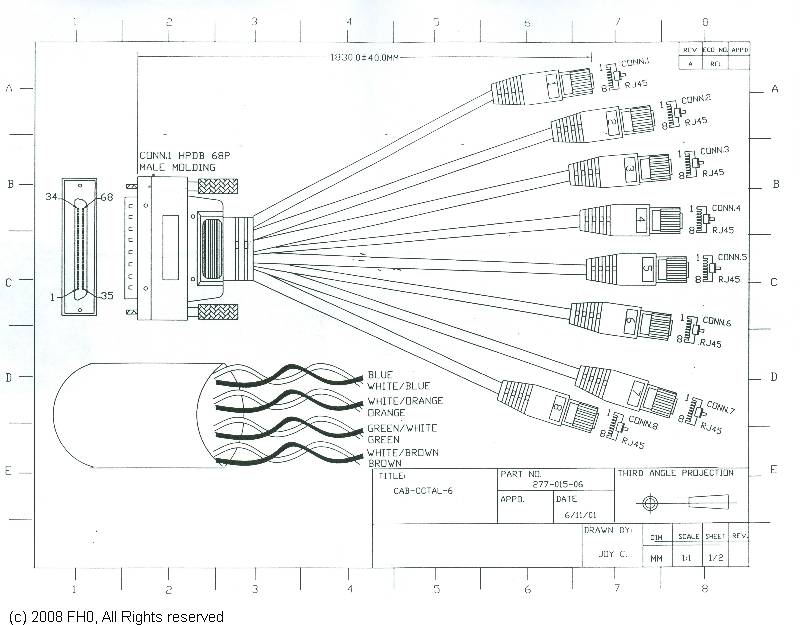

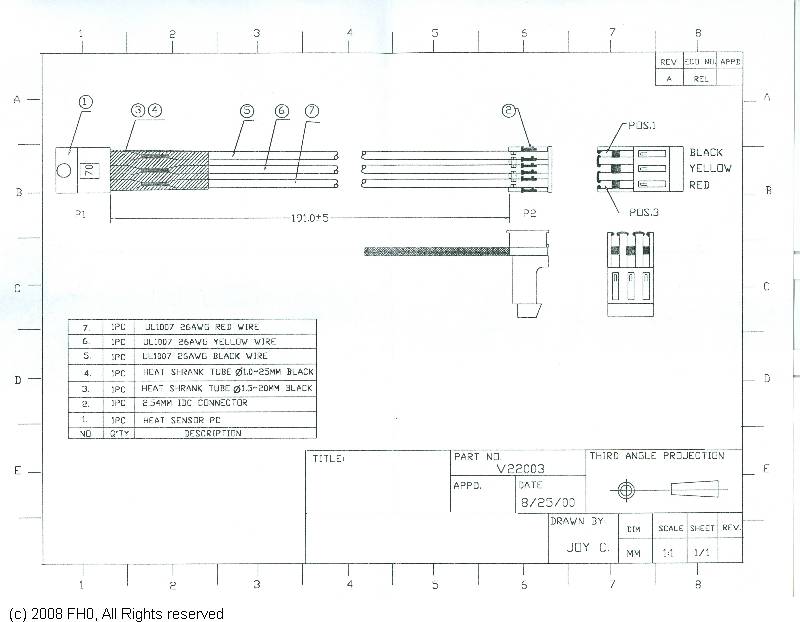

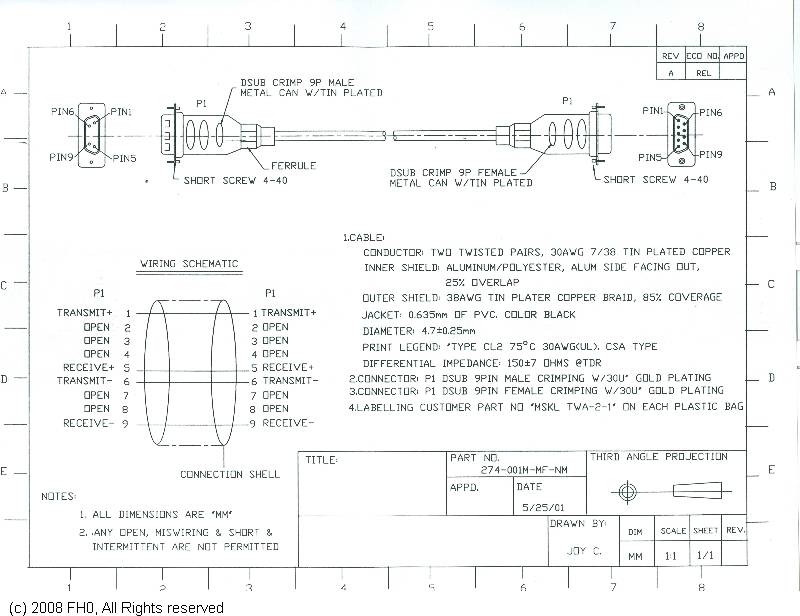

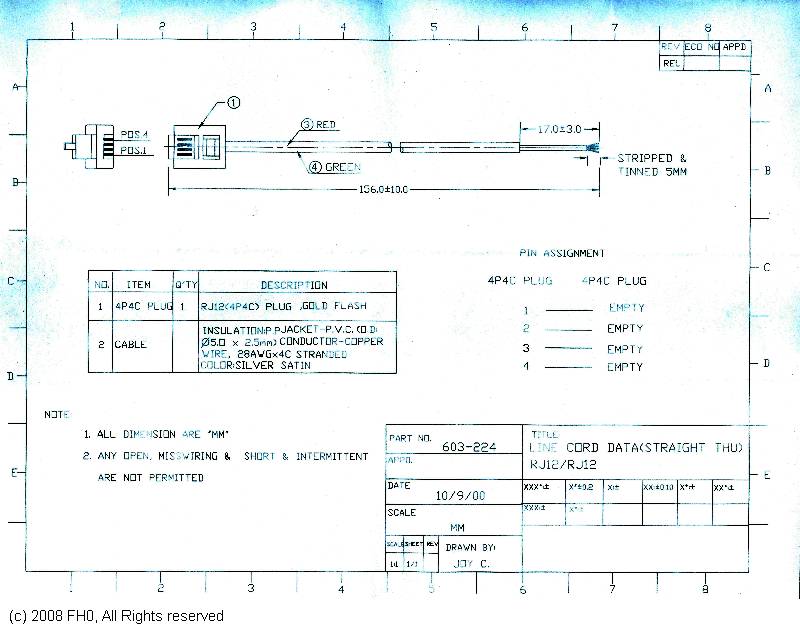

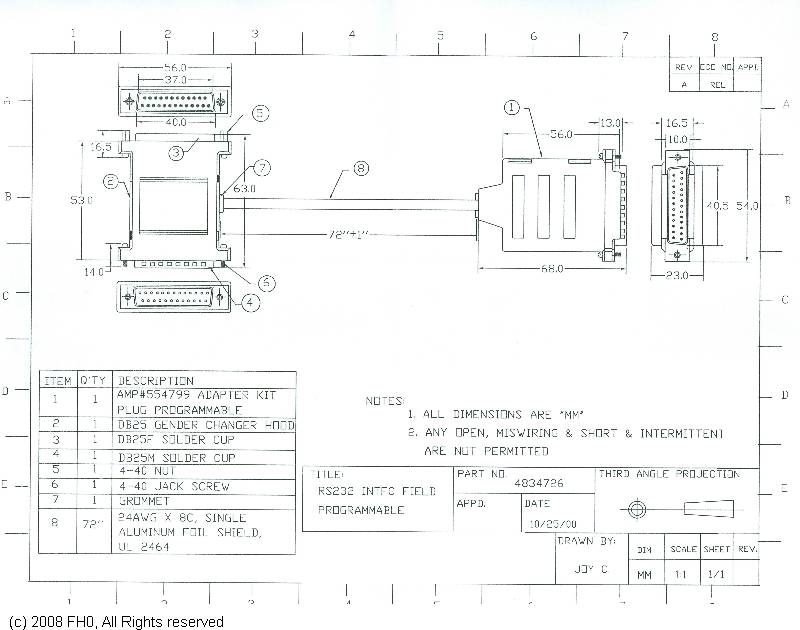

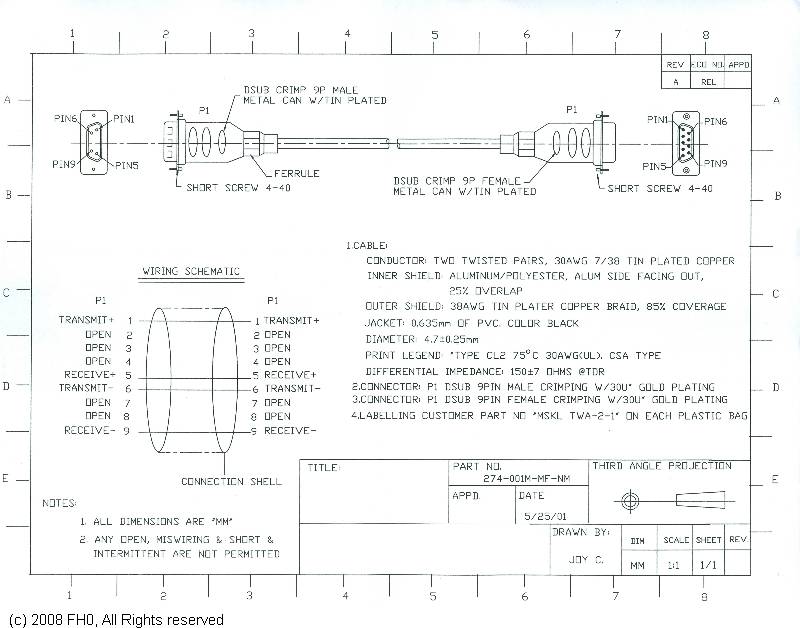

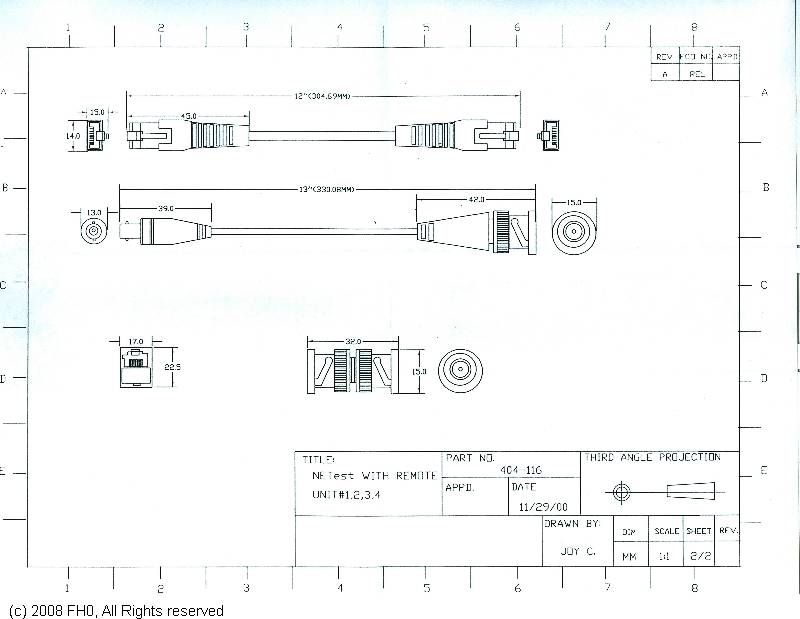

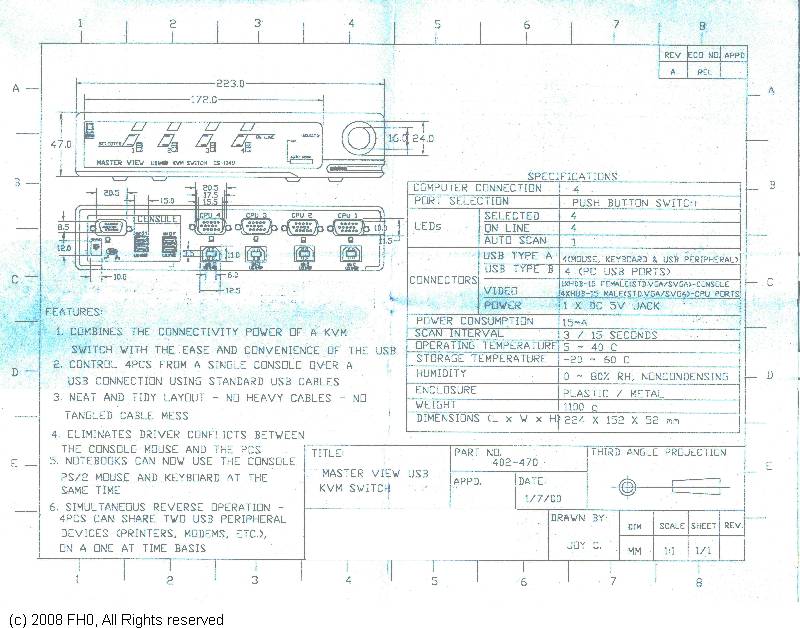

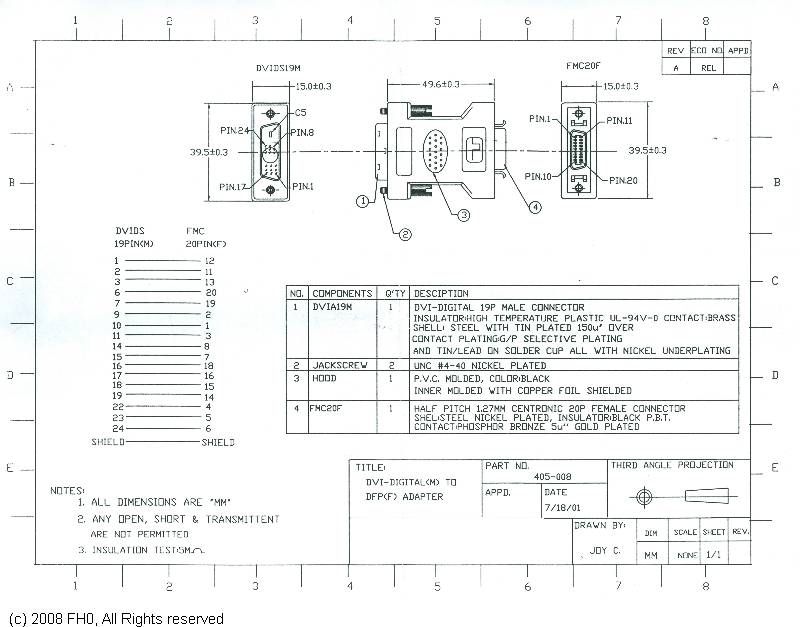

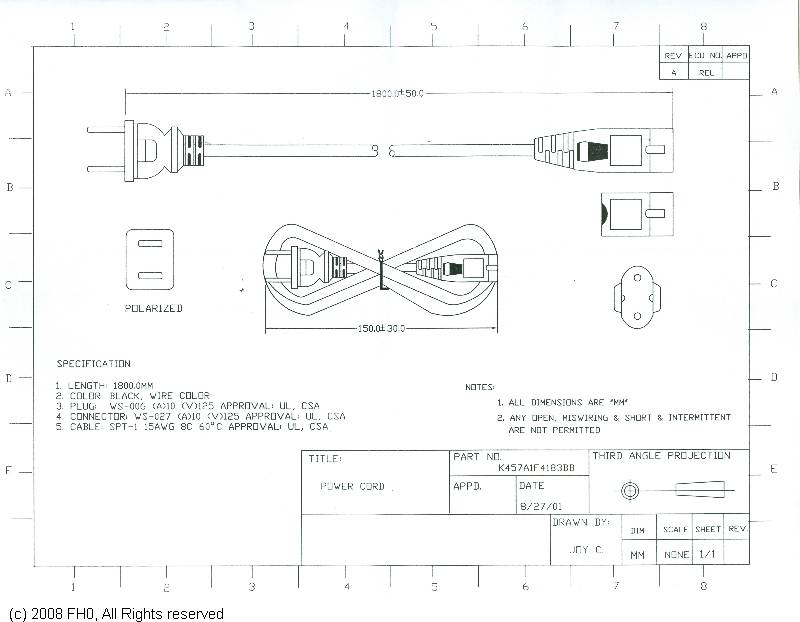

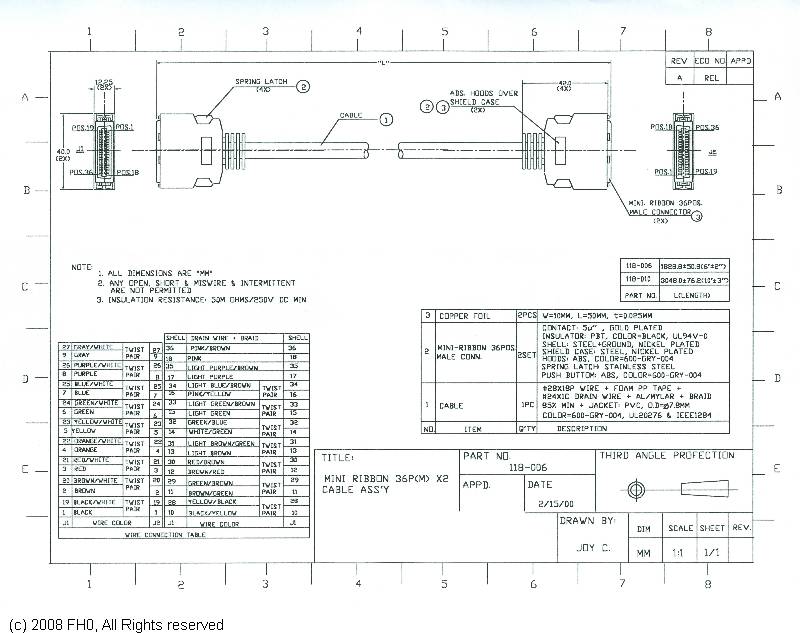

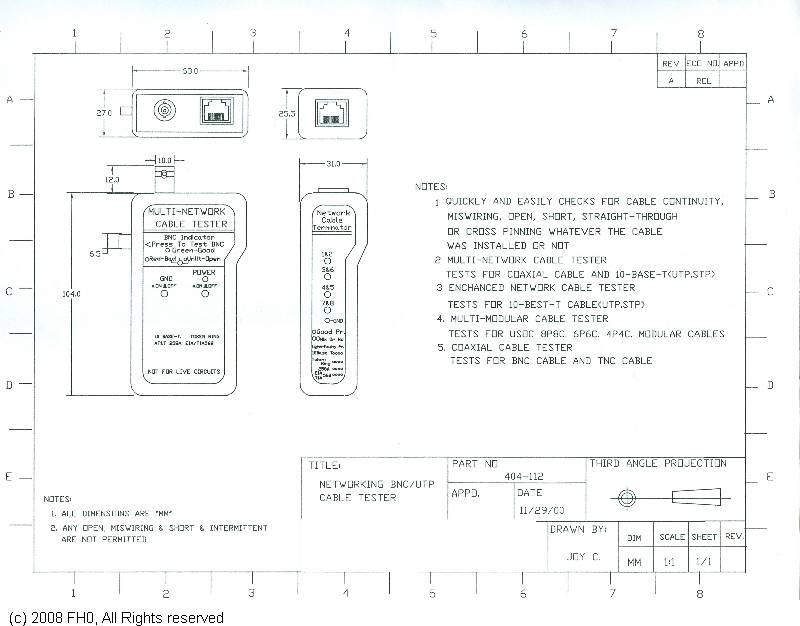

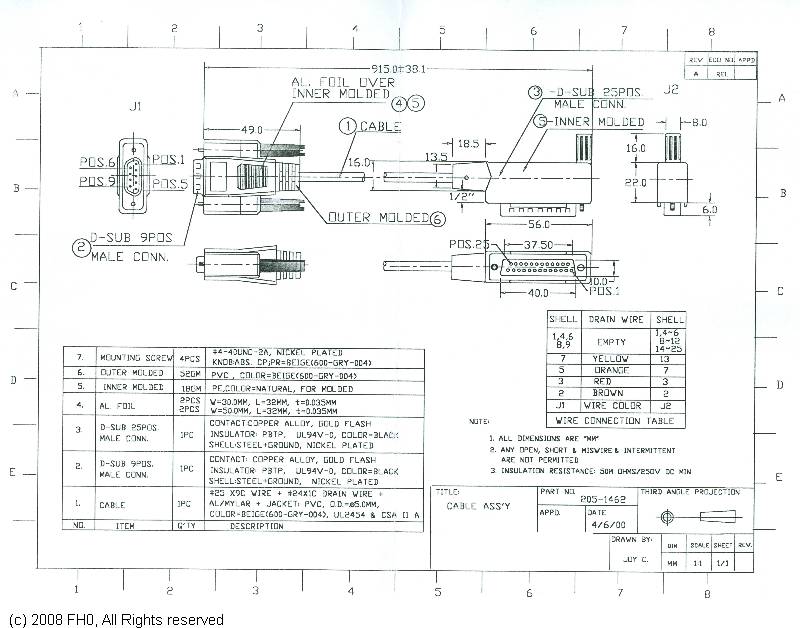

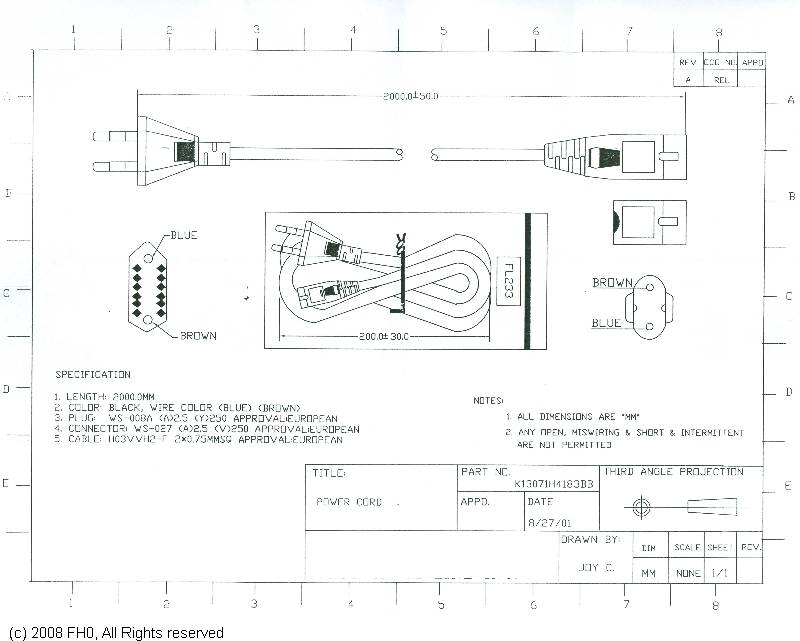

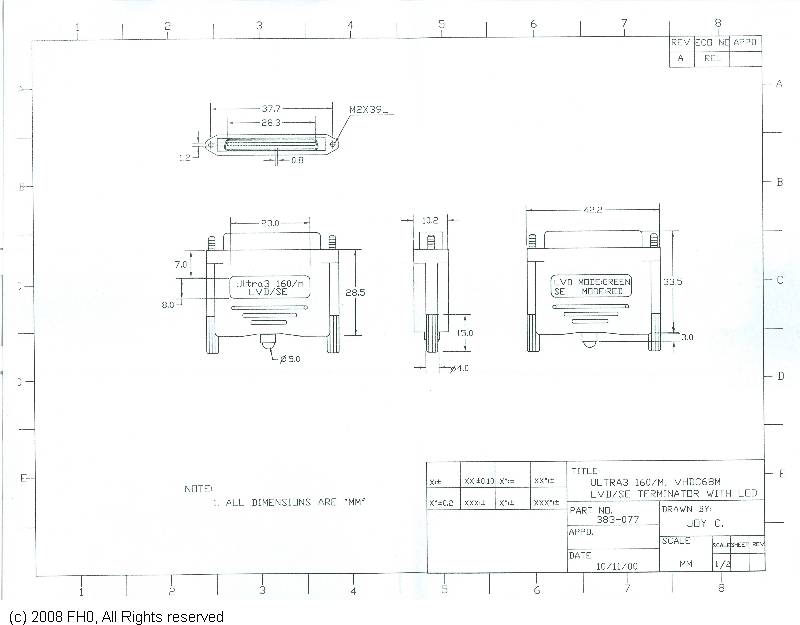

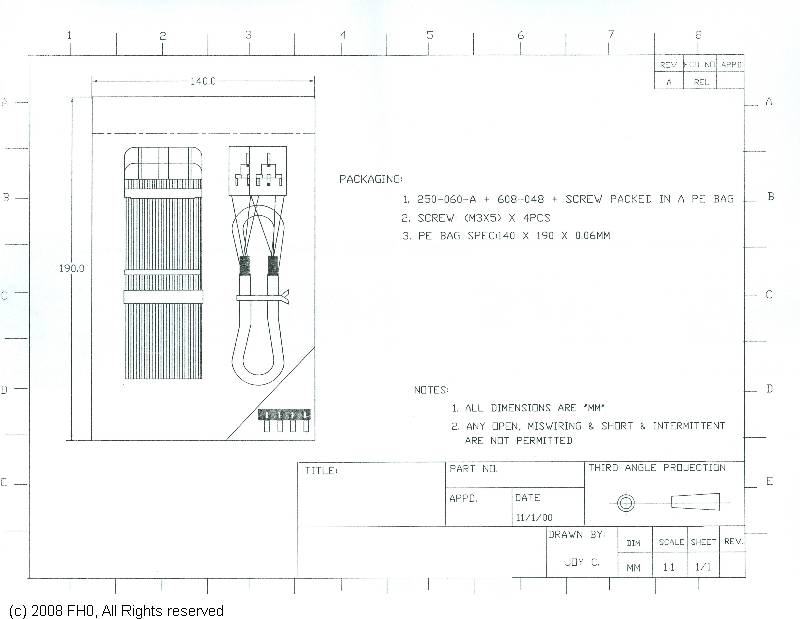

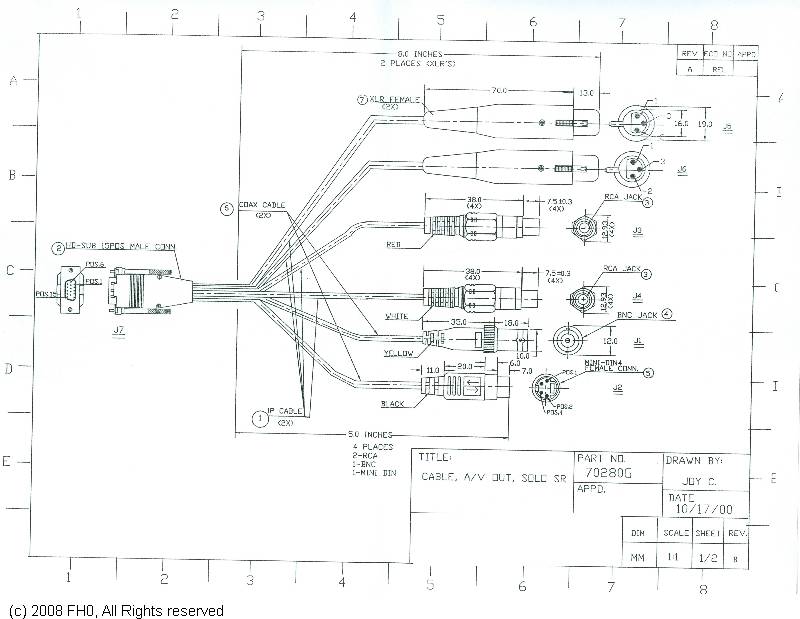

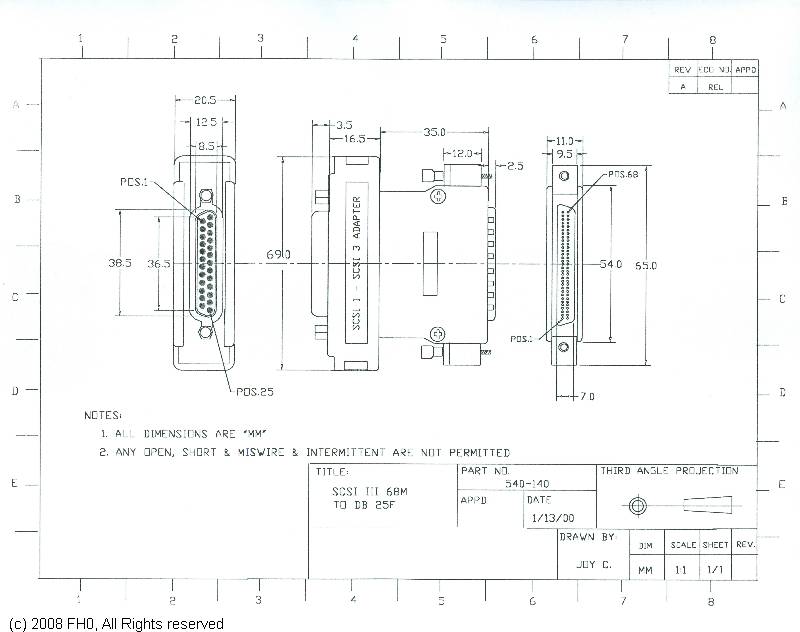

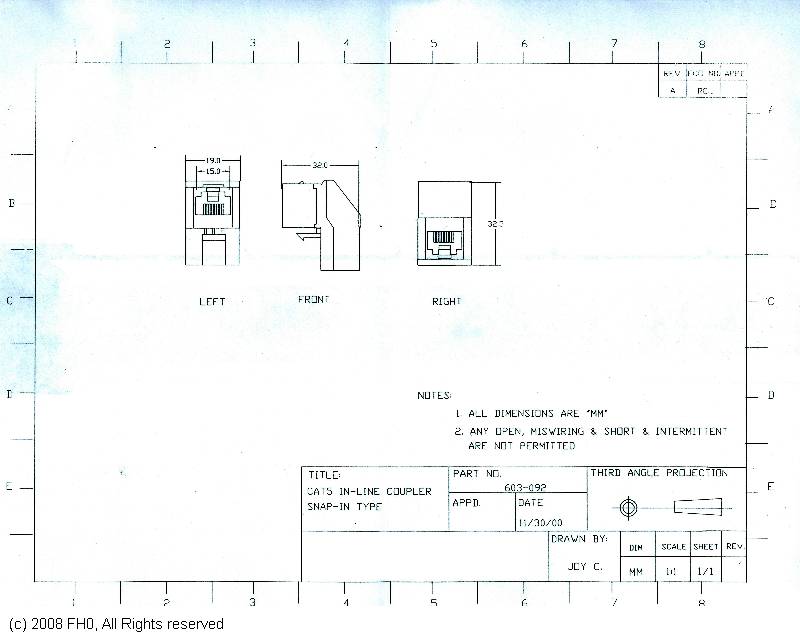

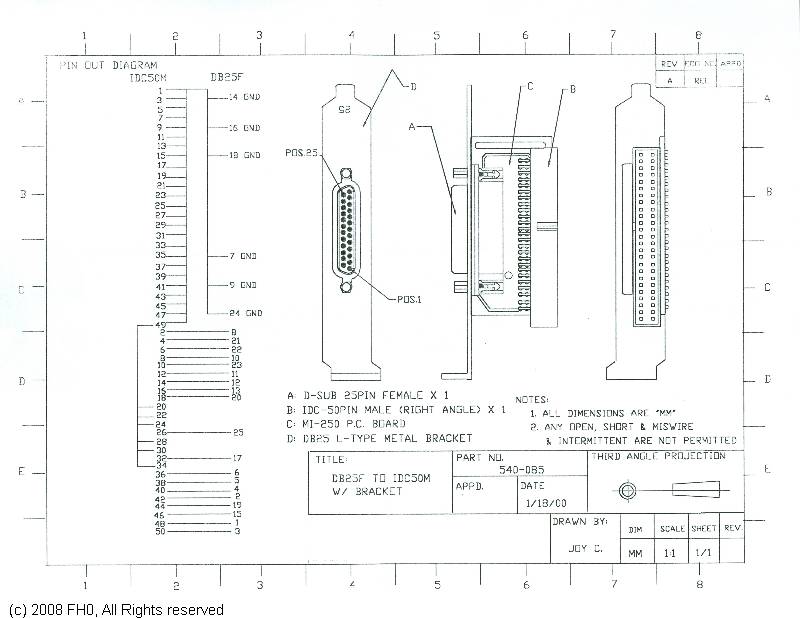

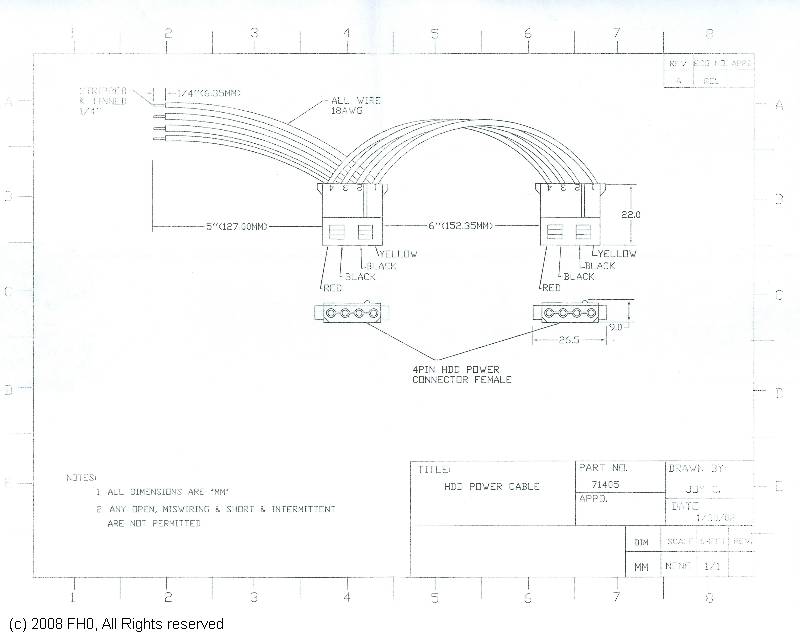

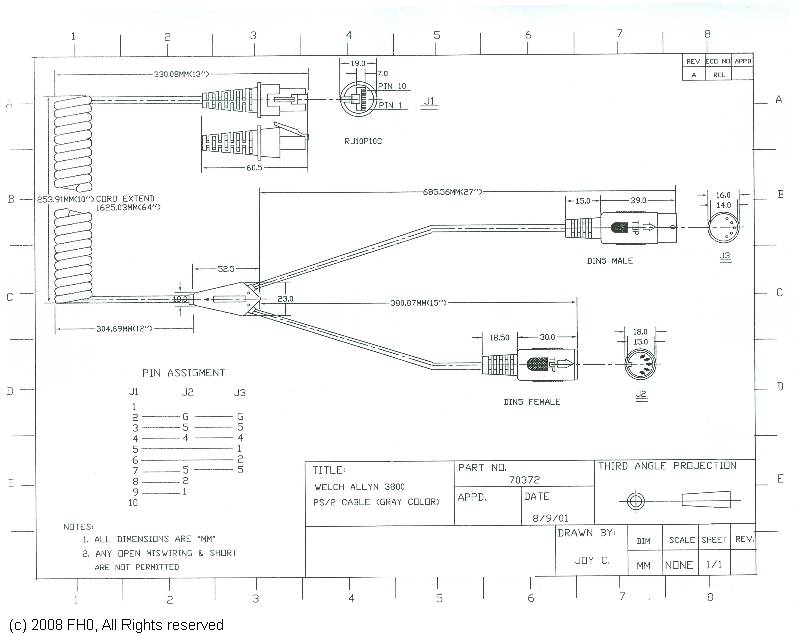

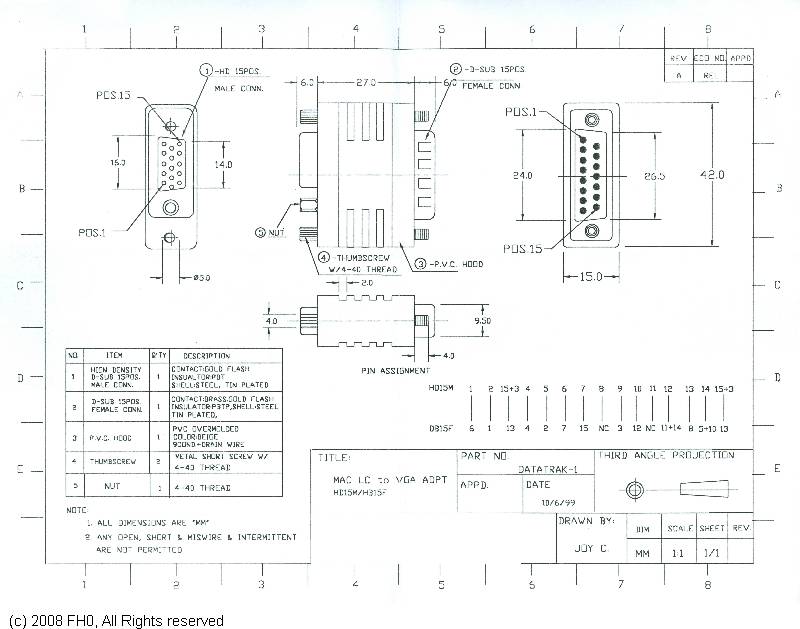

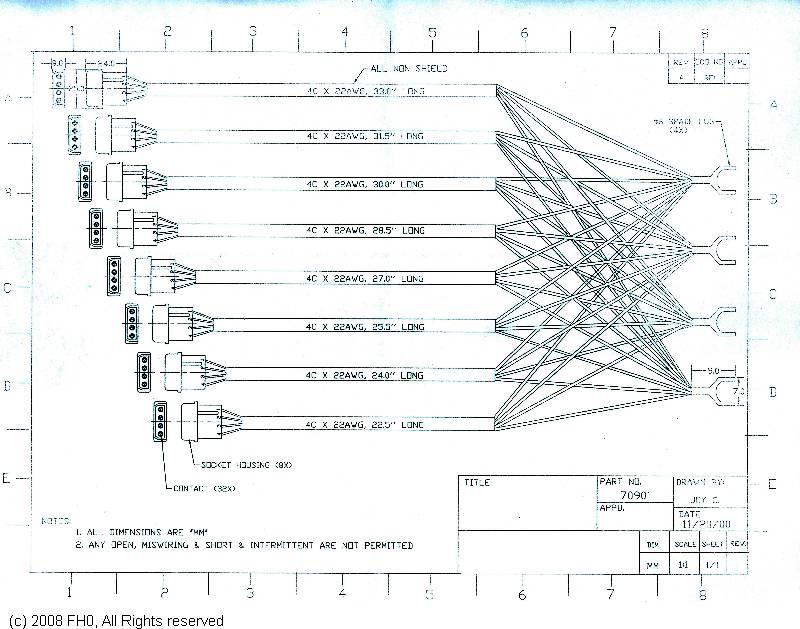

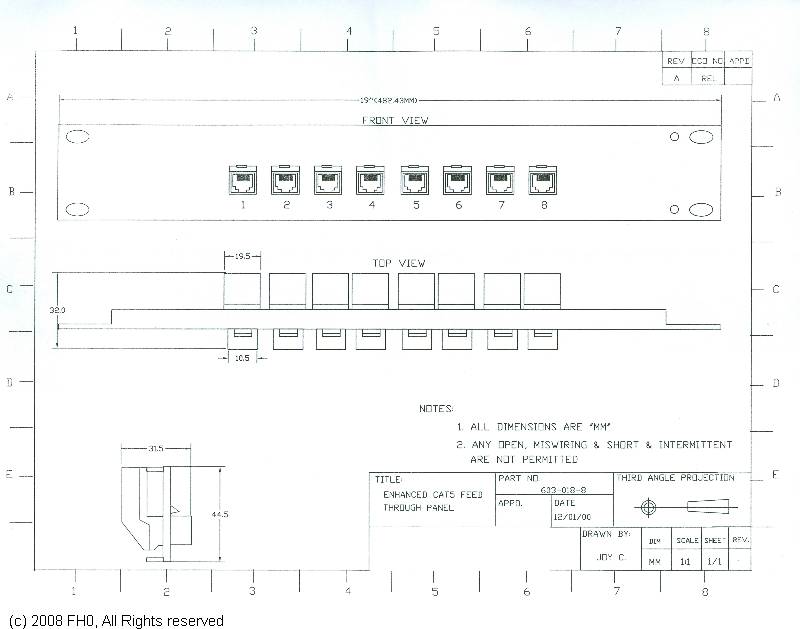

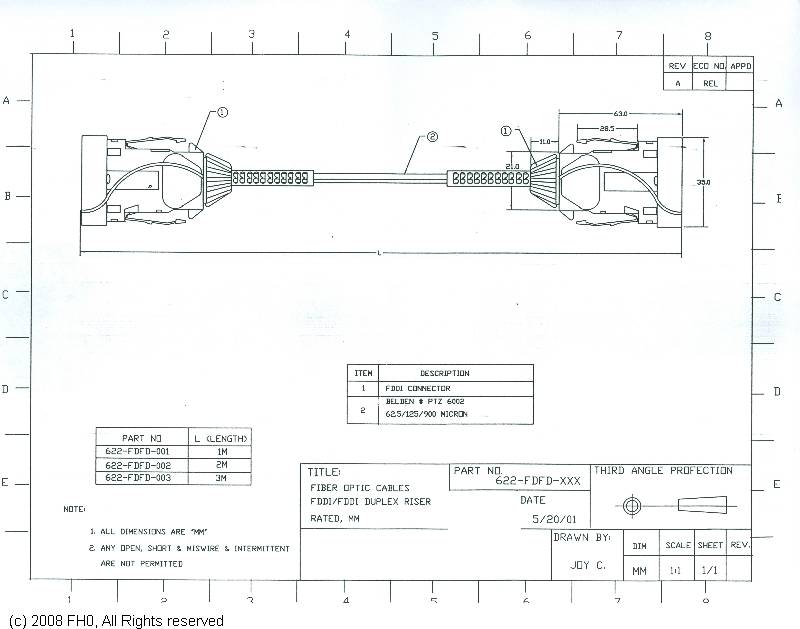

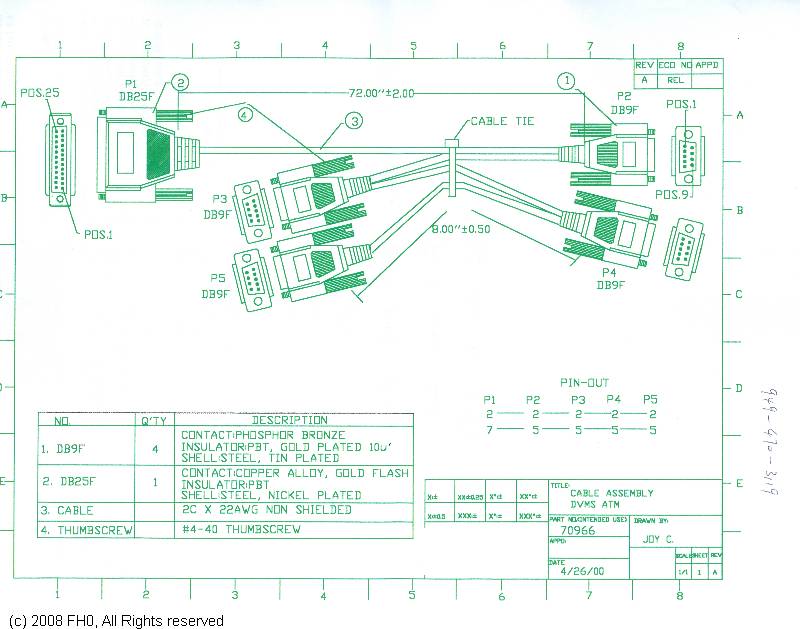

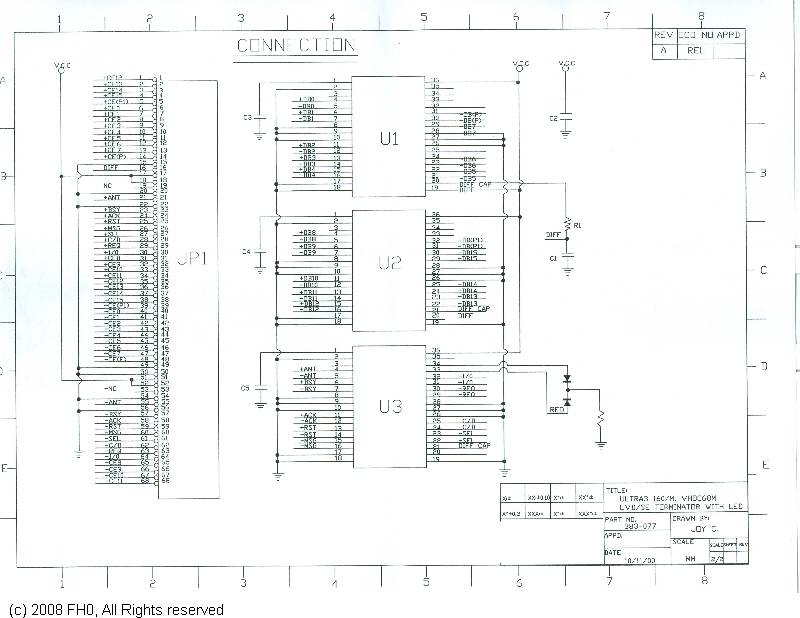

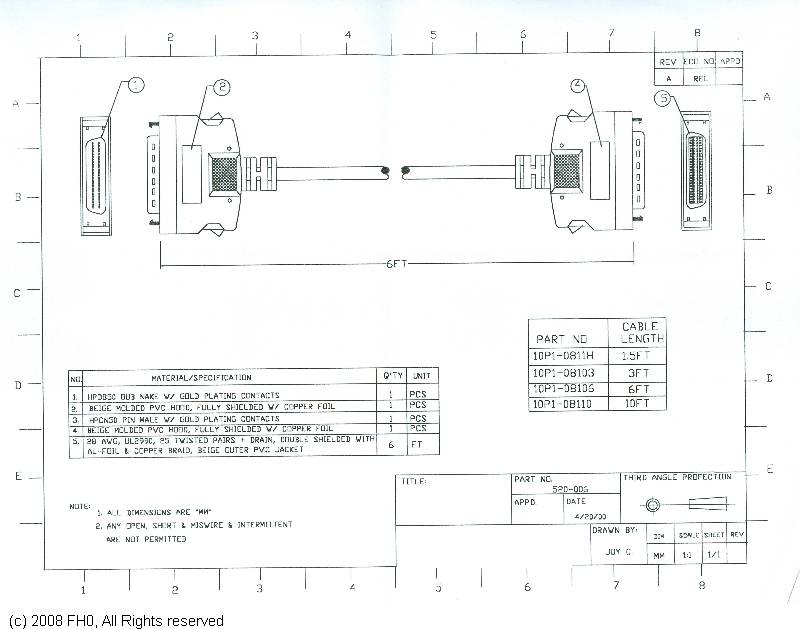

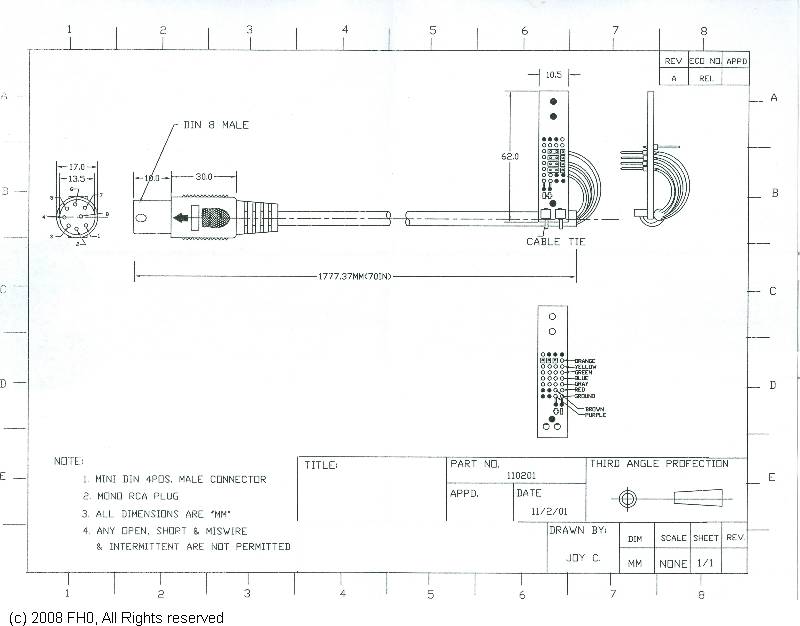

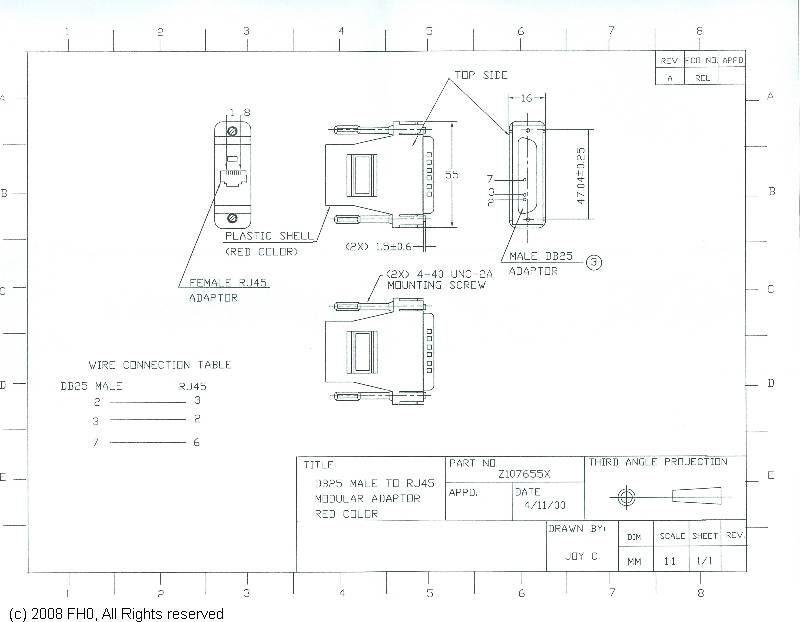

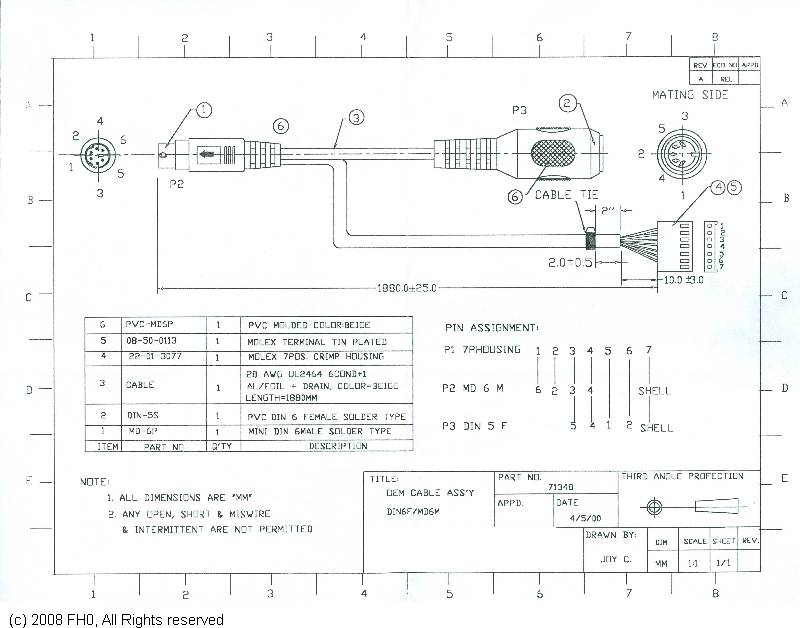

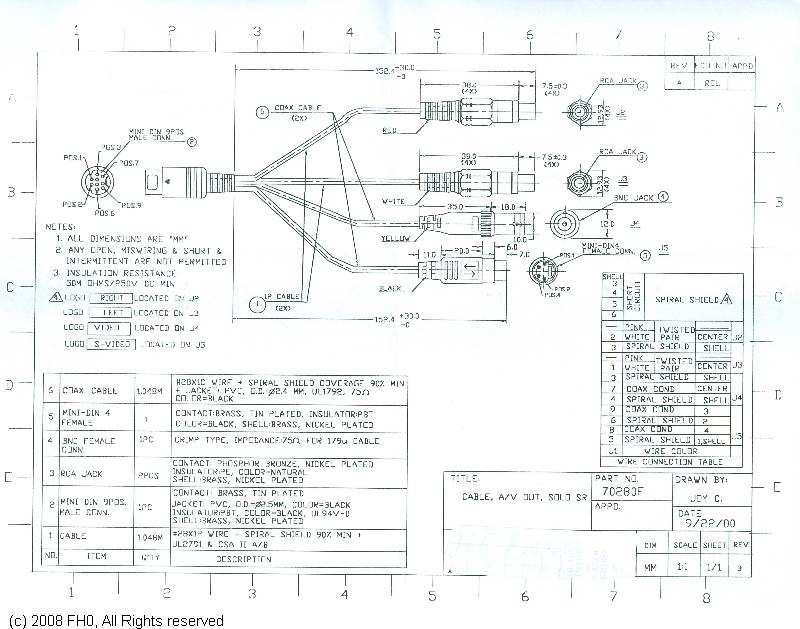

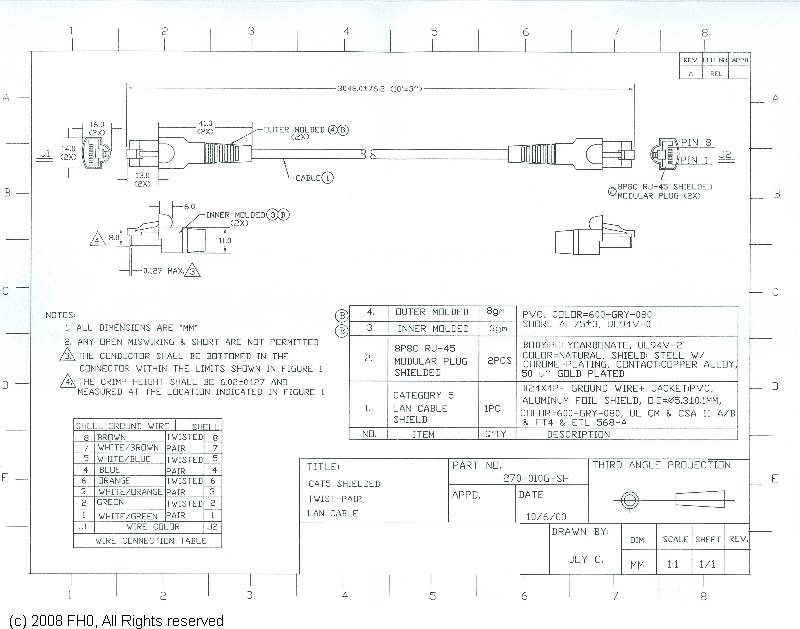

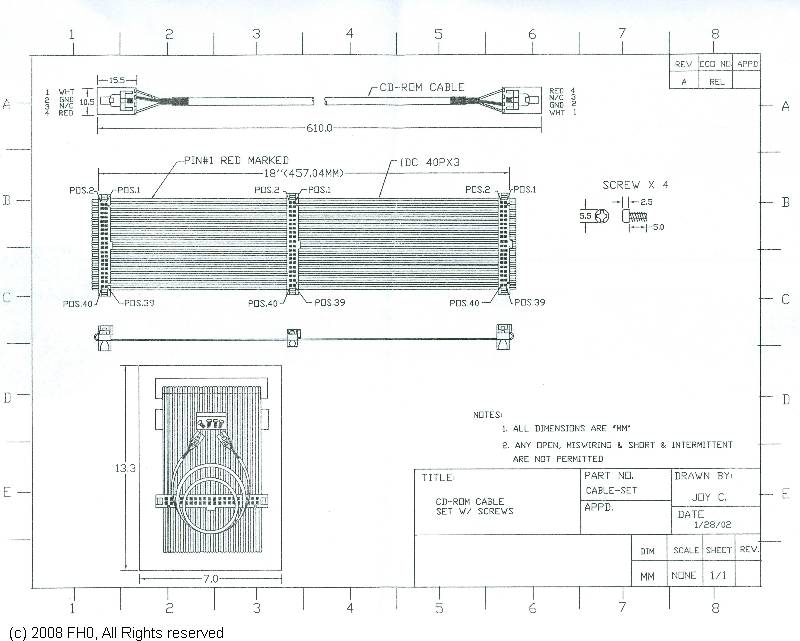

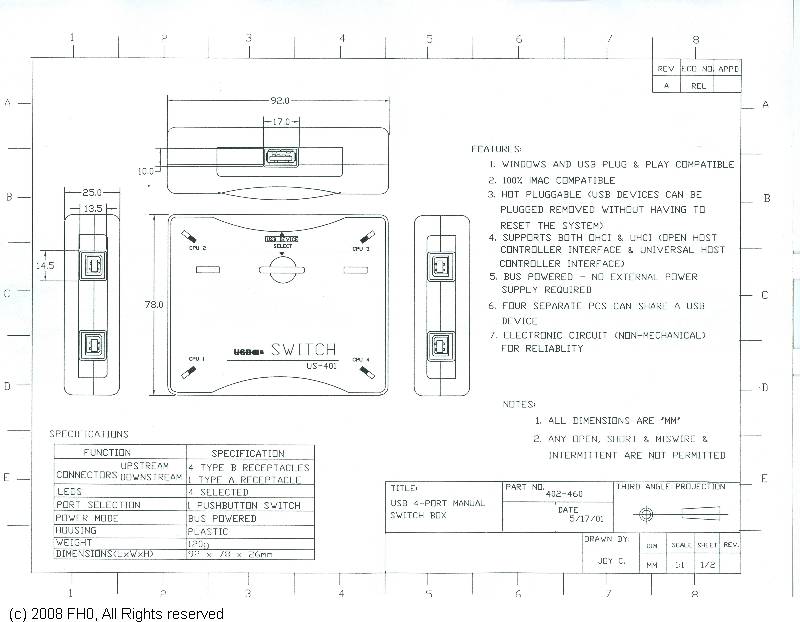

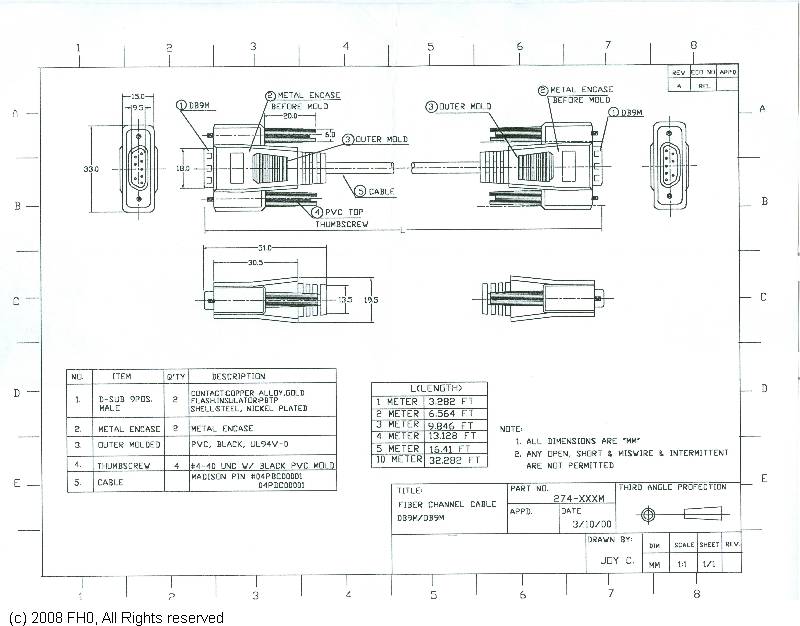

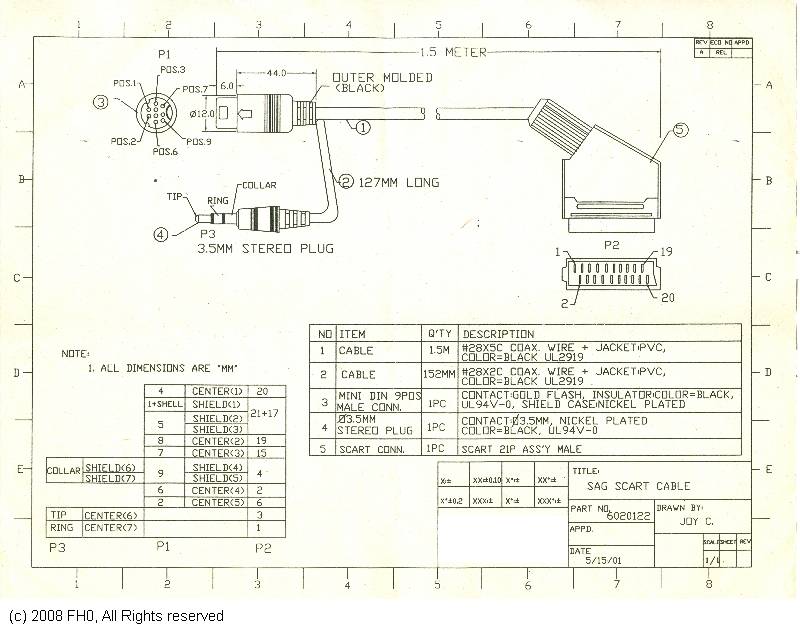

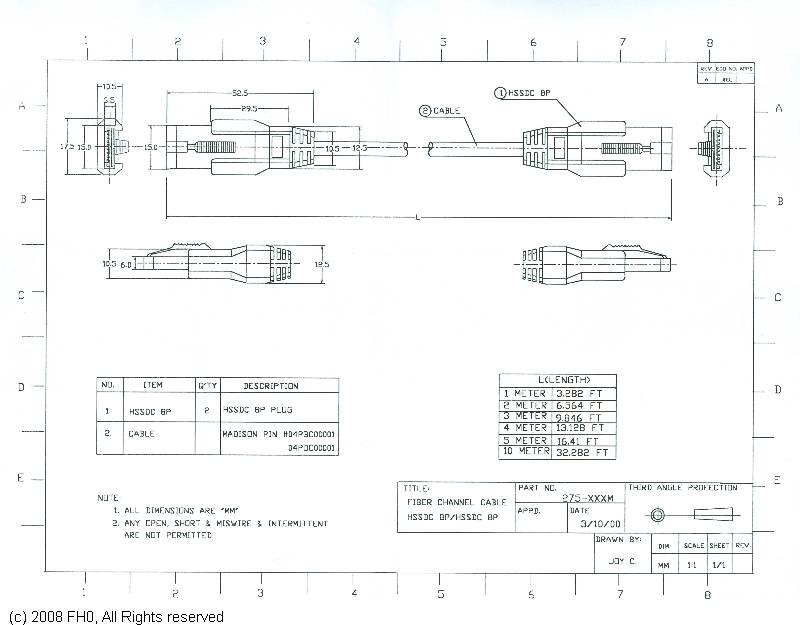

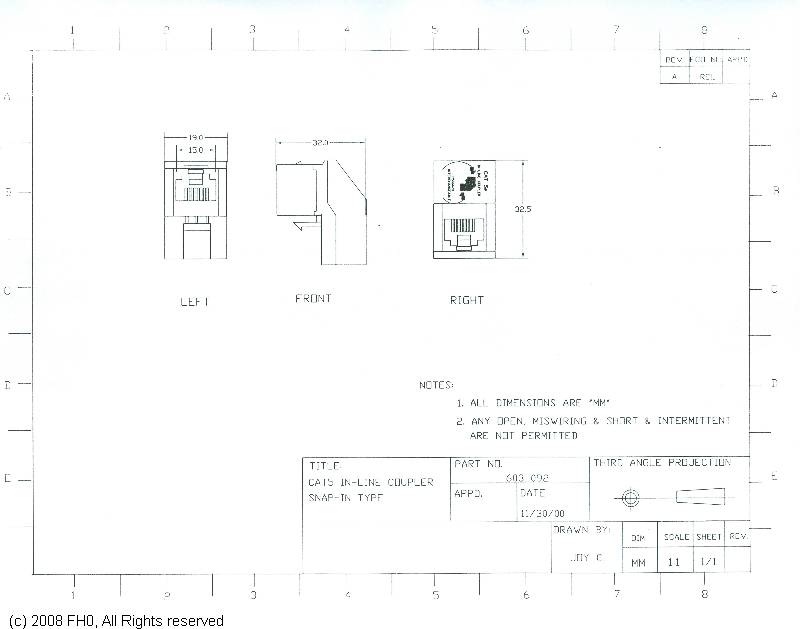

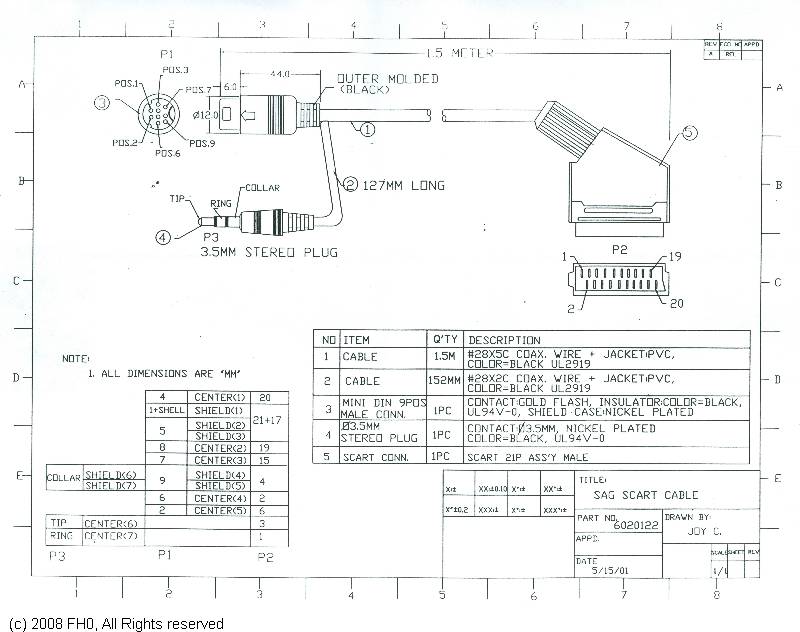

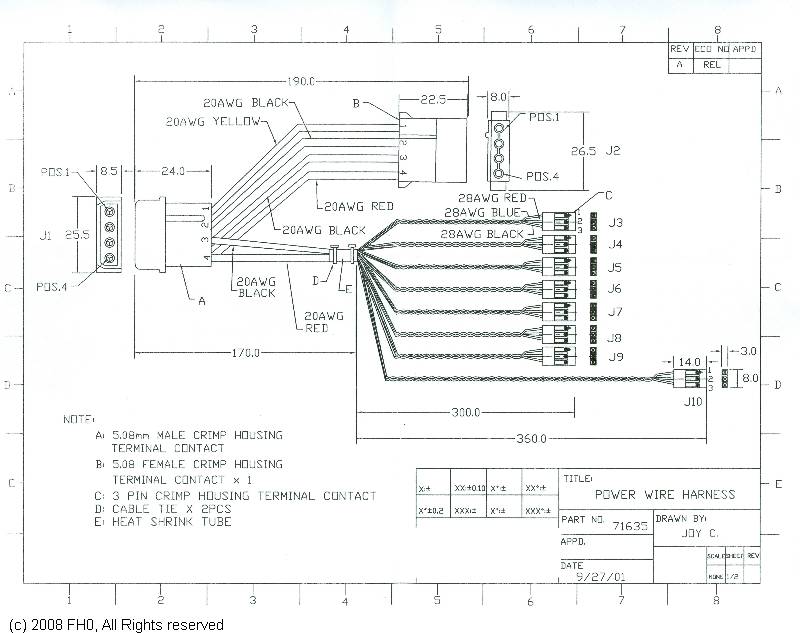

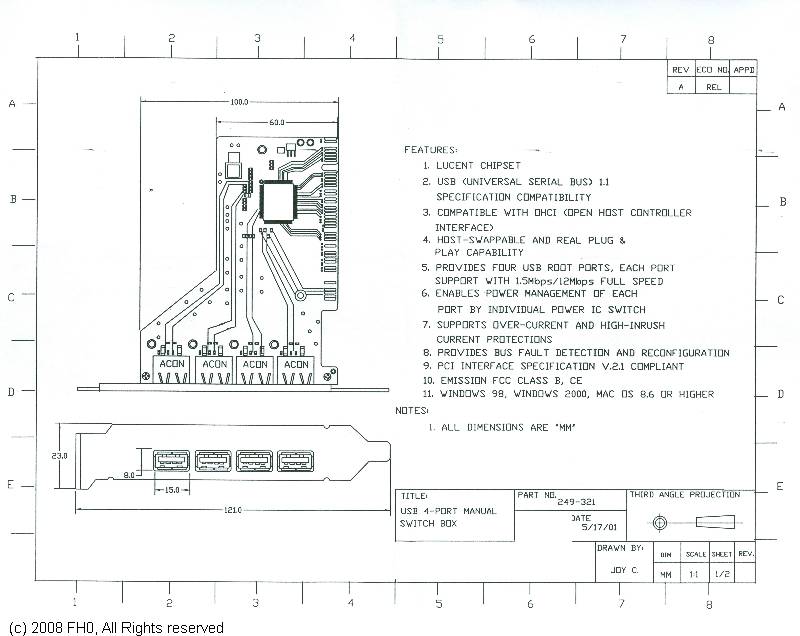

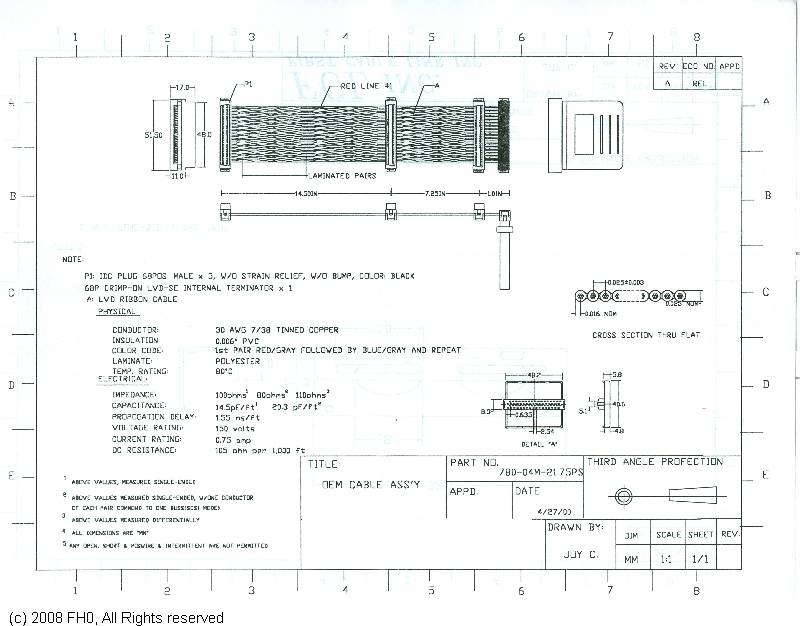

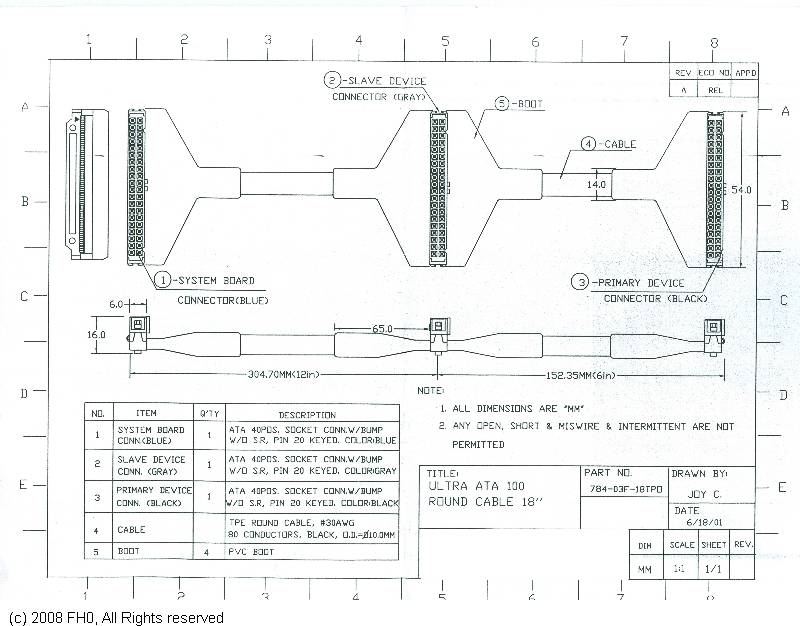

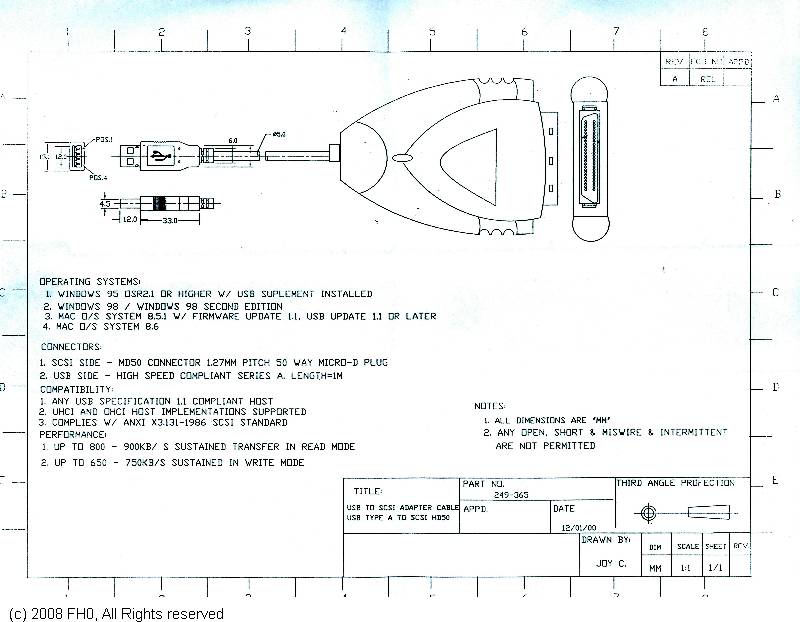

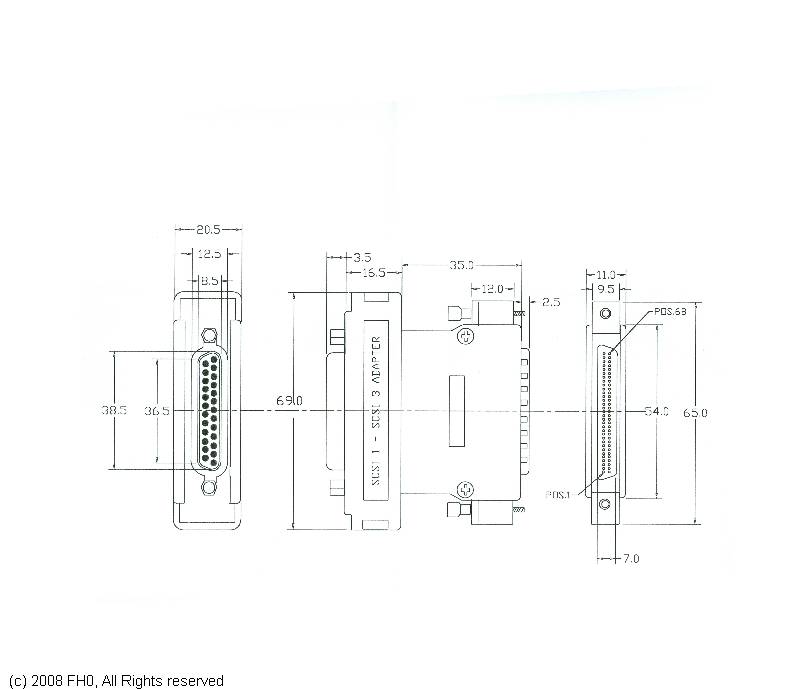

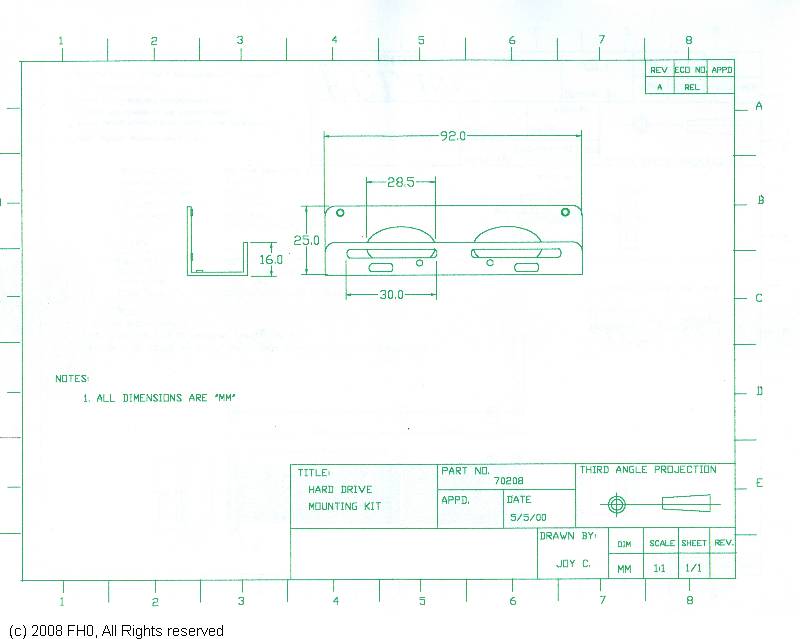

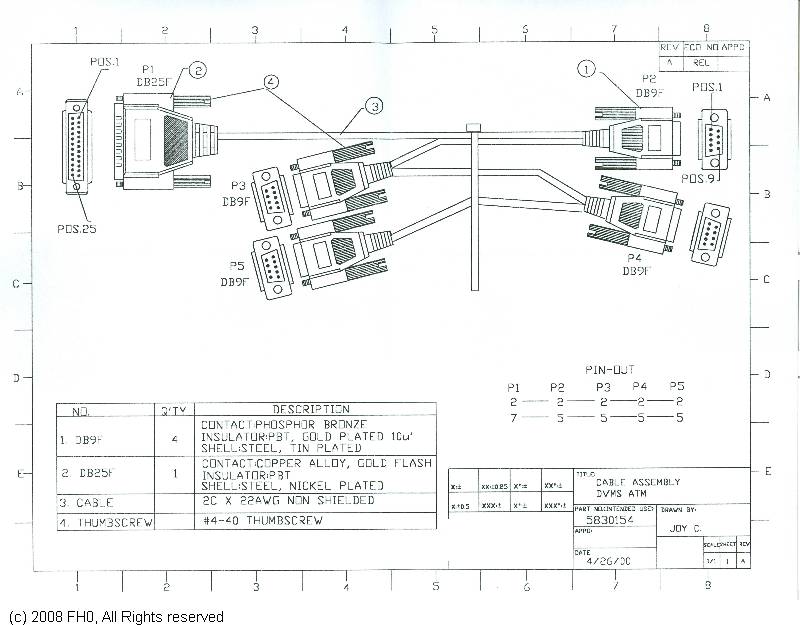

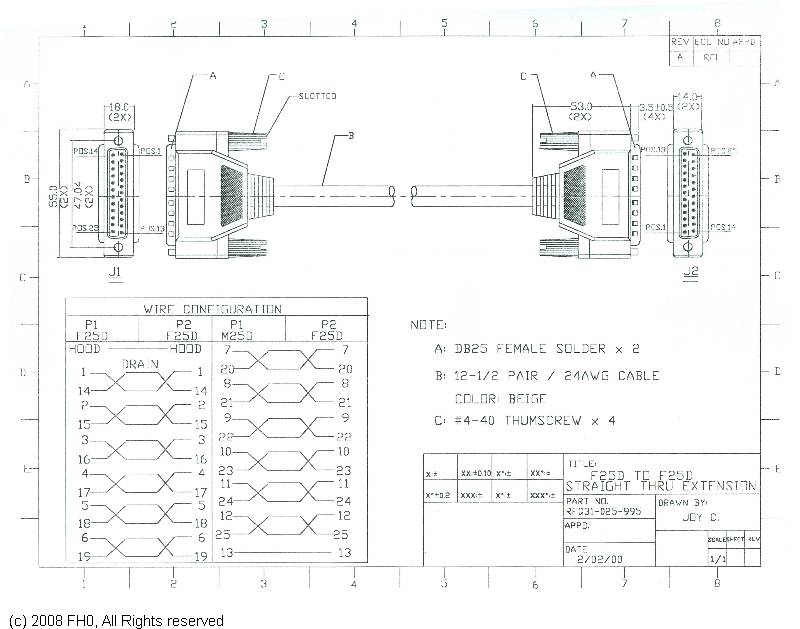

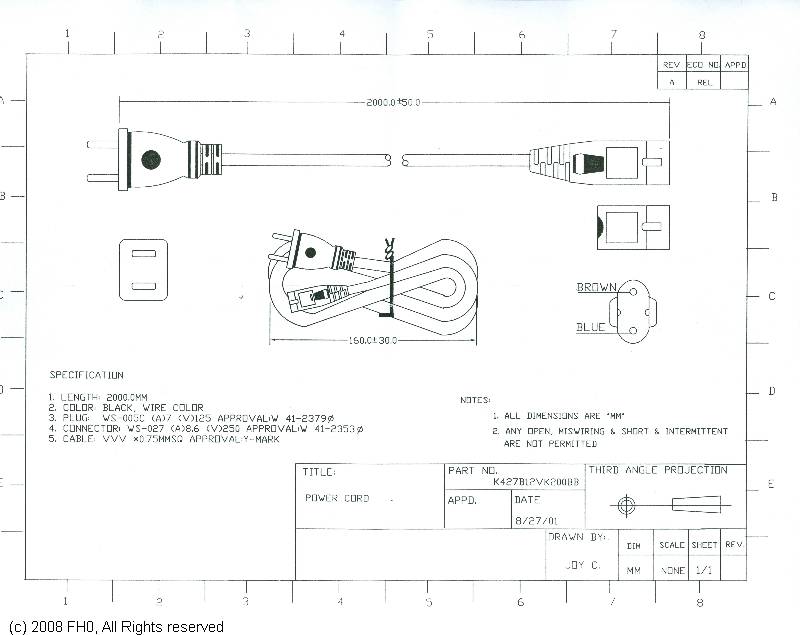

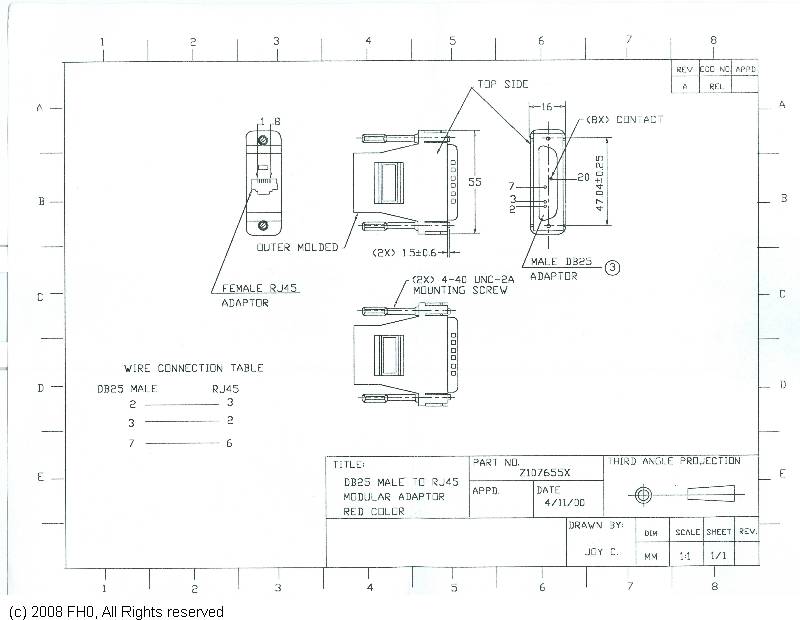

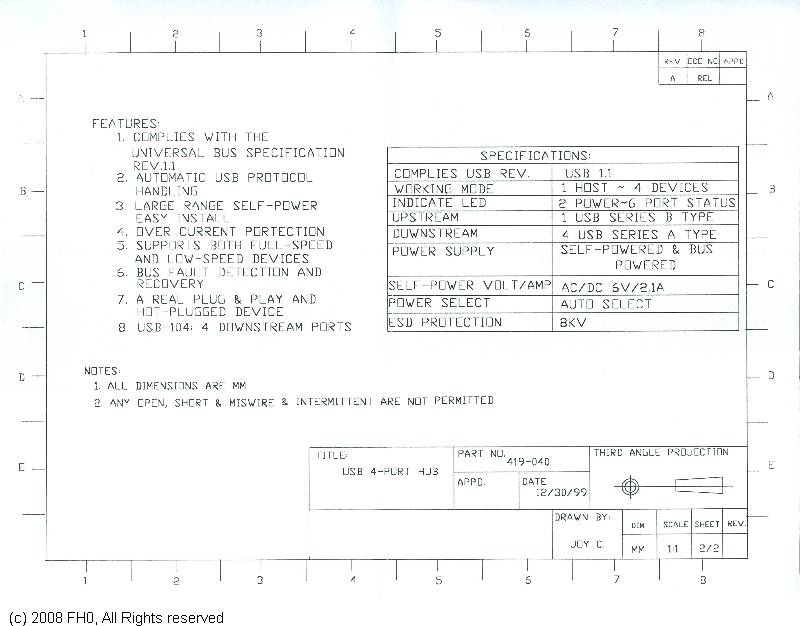

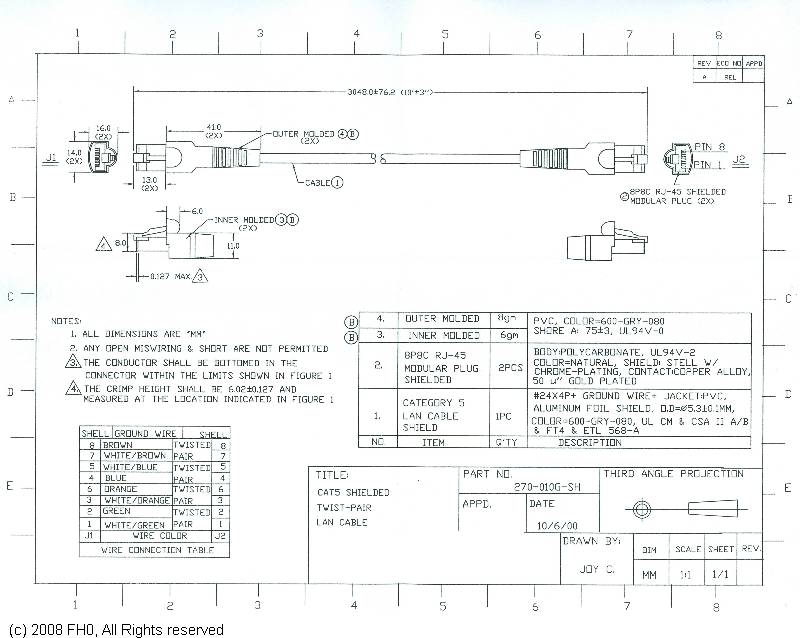

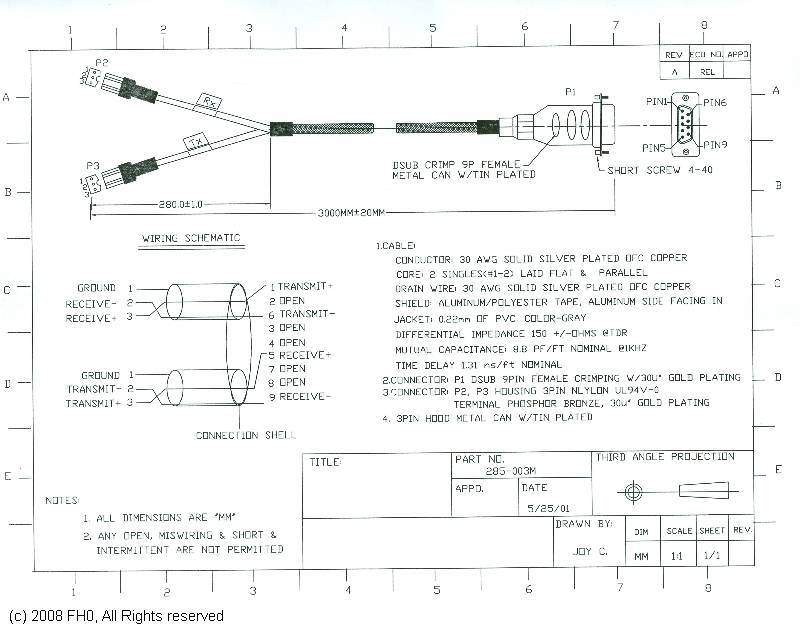

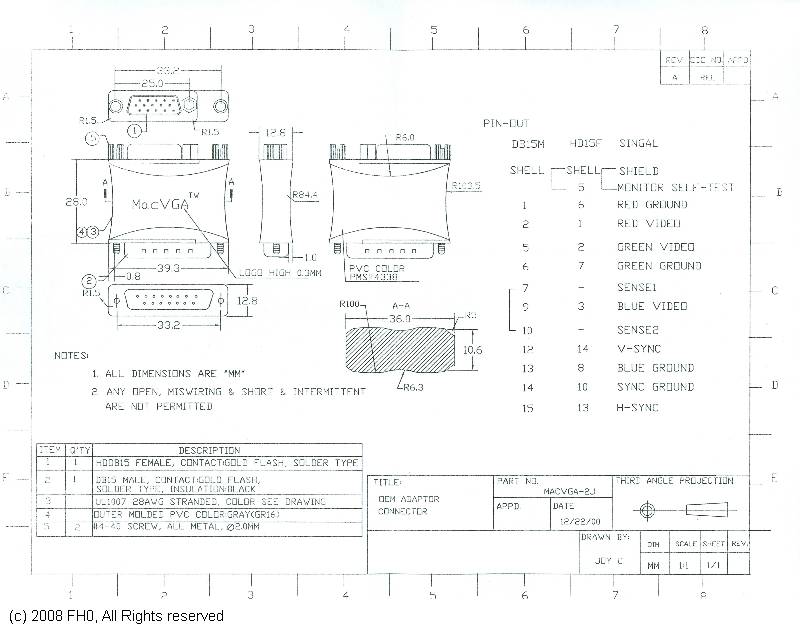

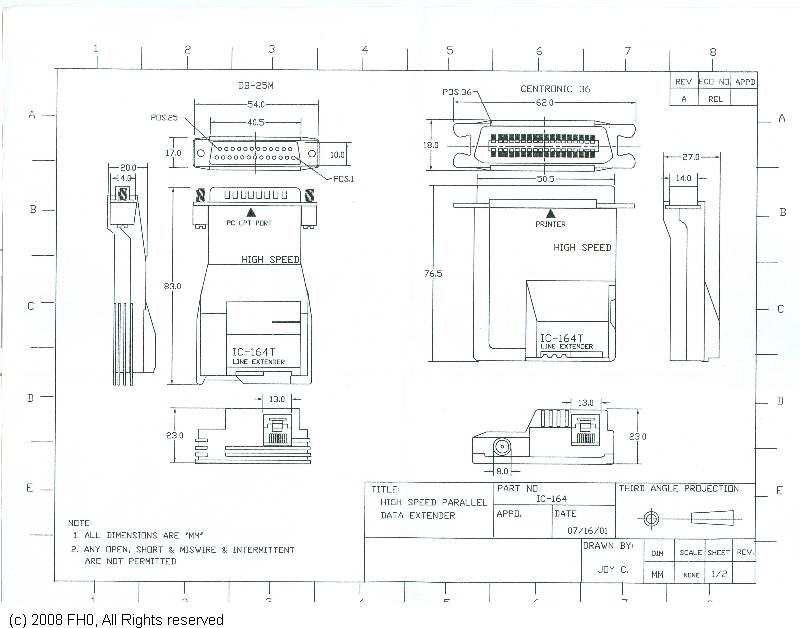

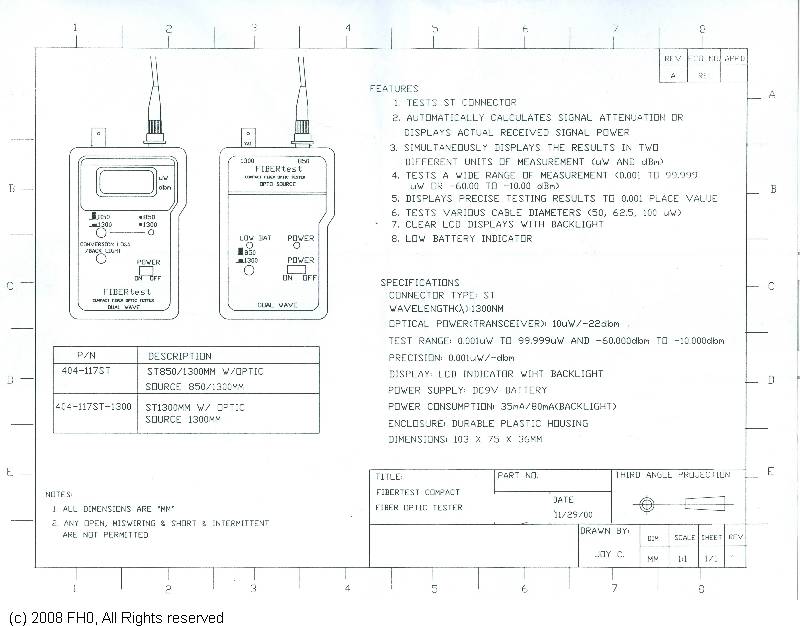

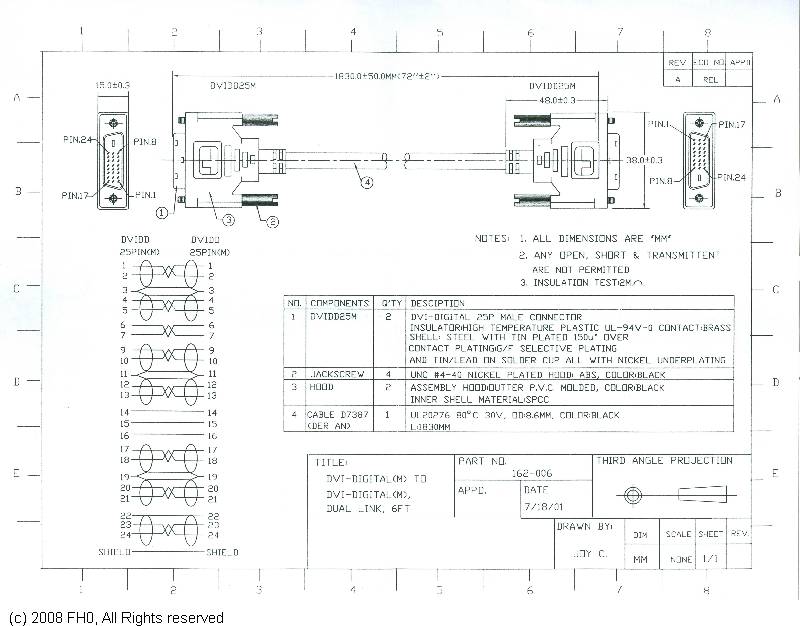

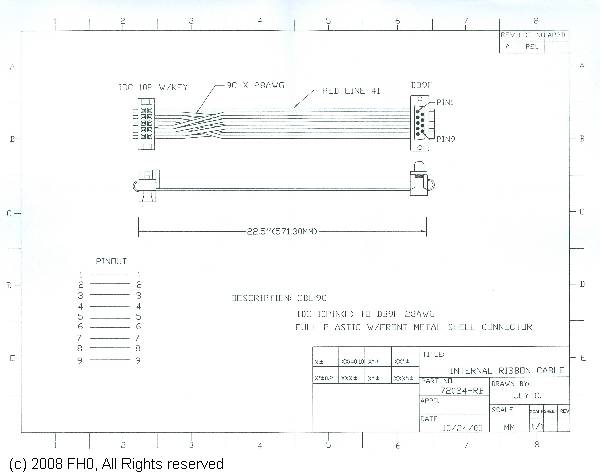

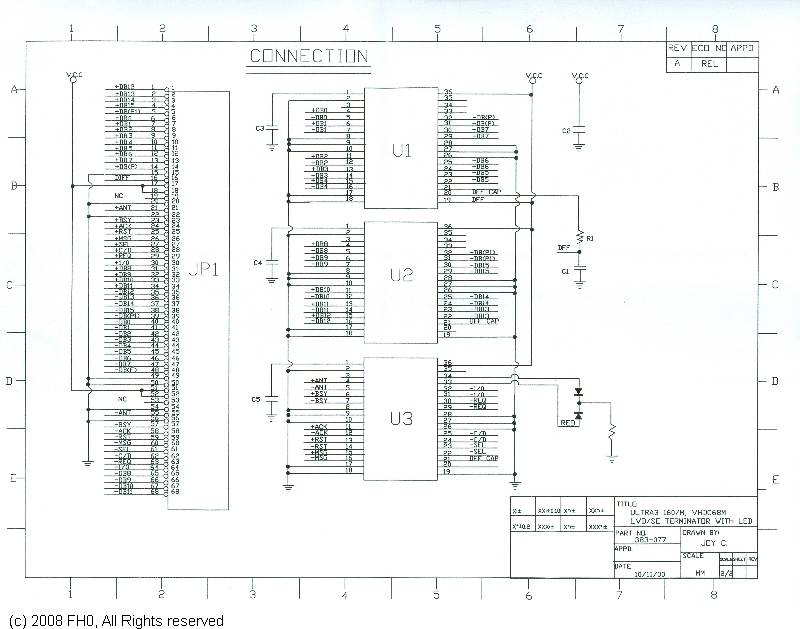

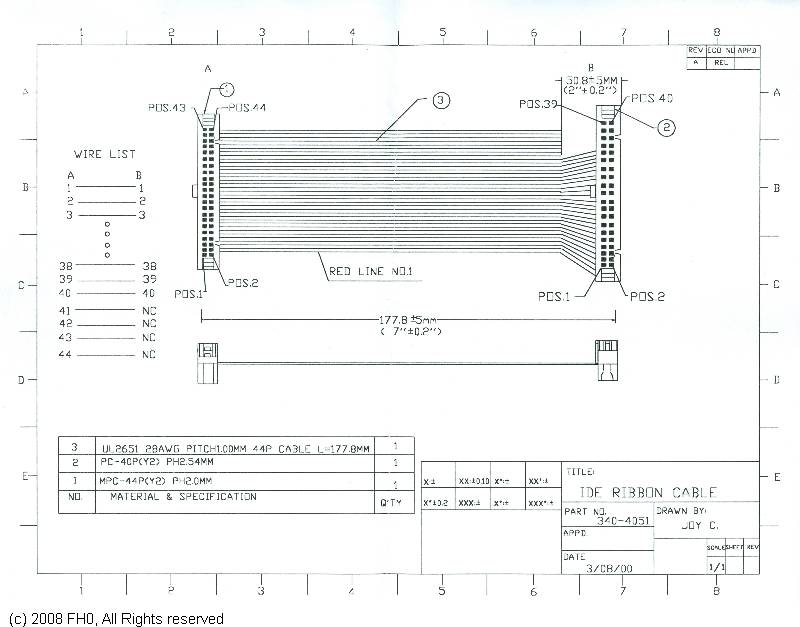

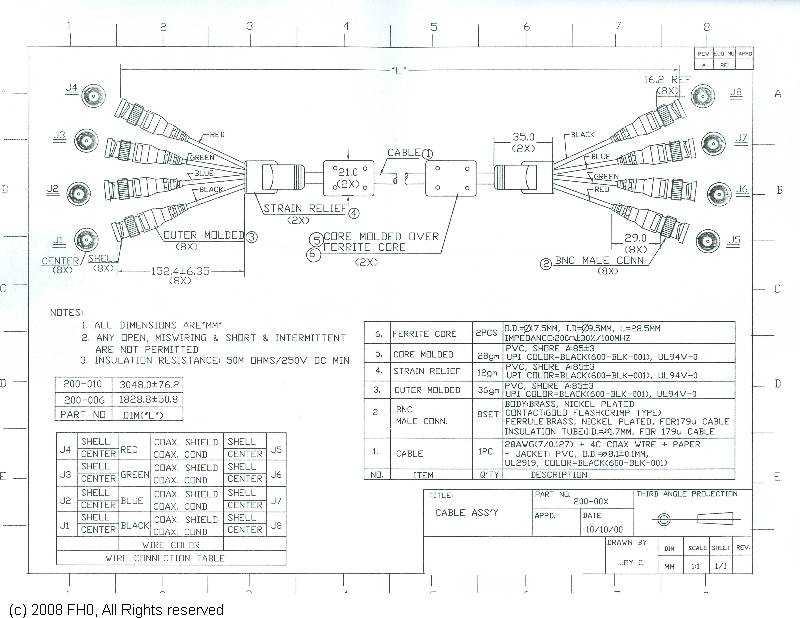

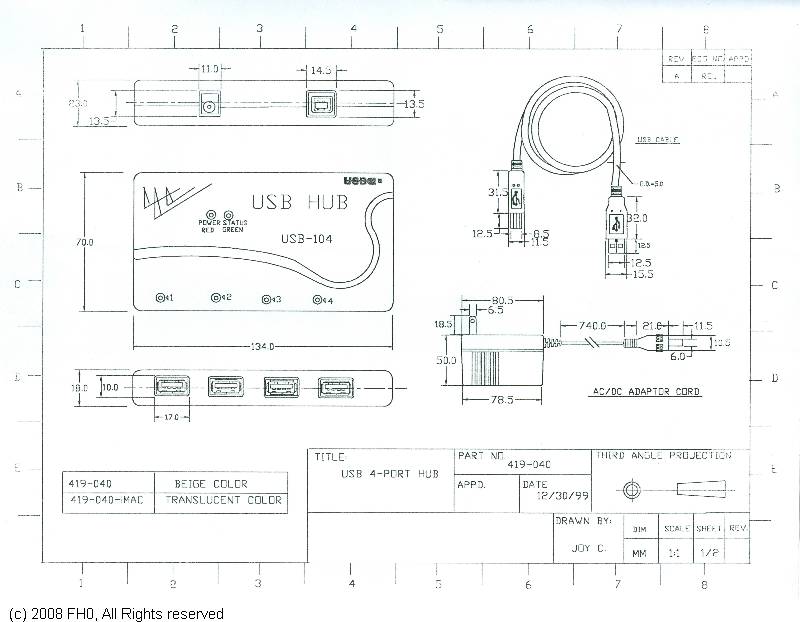

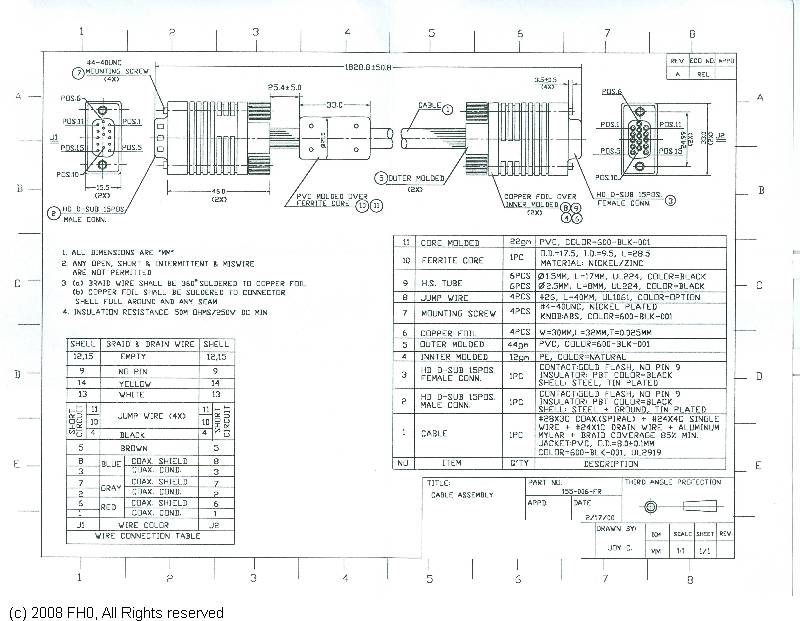

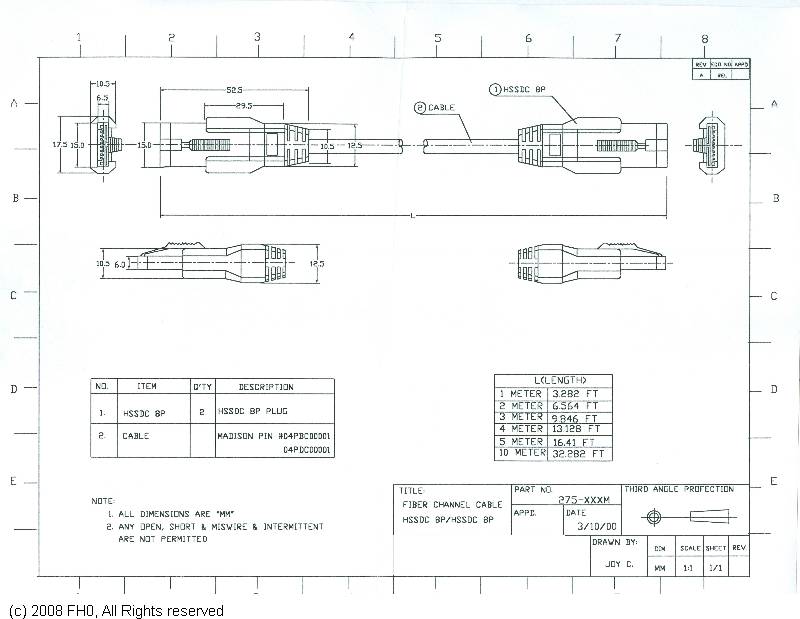

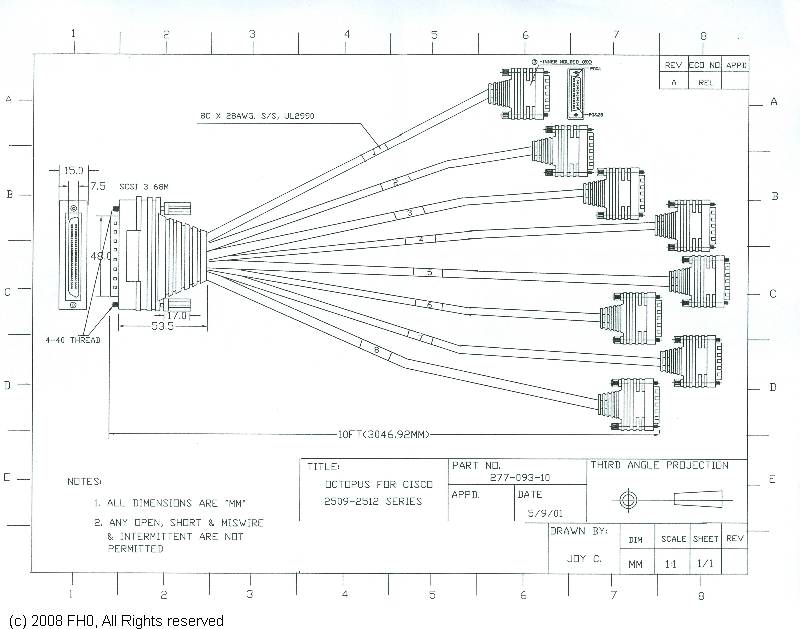

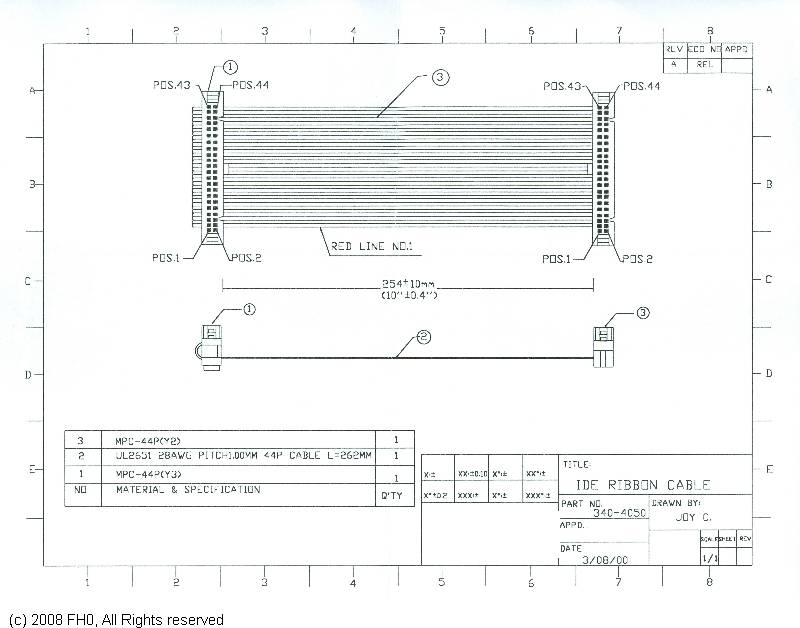

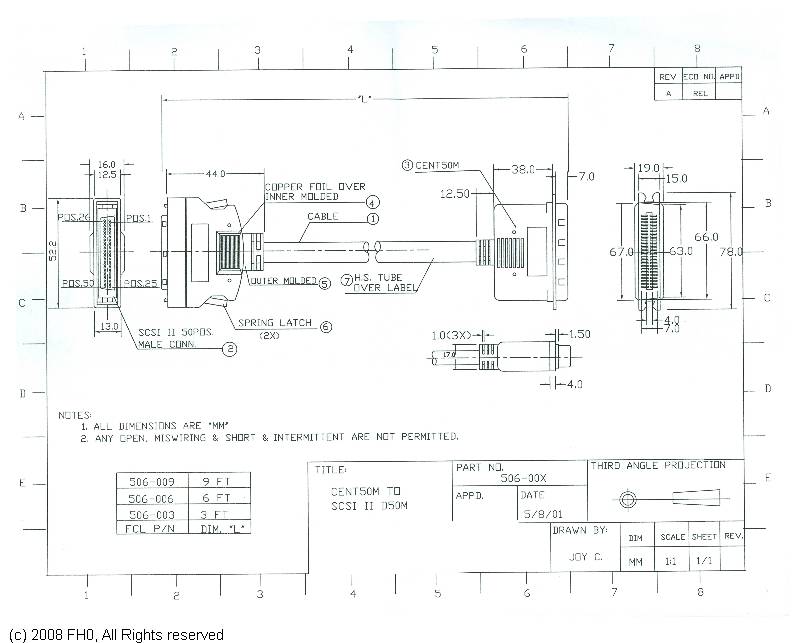

This was a crazy job. Every single line including the smallest details were individually drawn. No templates or clip-art was used. Every part had to be exactly as it was made. These drawings were made after the parts were made. I was given the part and I would measure everything using a micrometer and recreate it in Autocad in 2000. In some parts, especially the one's with CPU I had to use a magnifying glass to count the pins or tiny wires. ahhHHHH!!! My name was Joy back then, then I changed it to Sky and eventually it because Hsky since my Taiwanese name is (Hs)inying.
